Superglue Fevikwick Tube Filling |
| |
|
| |
| |
- Product View
- Technical Specification
|
 |

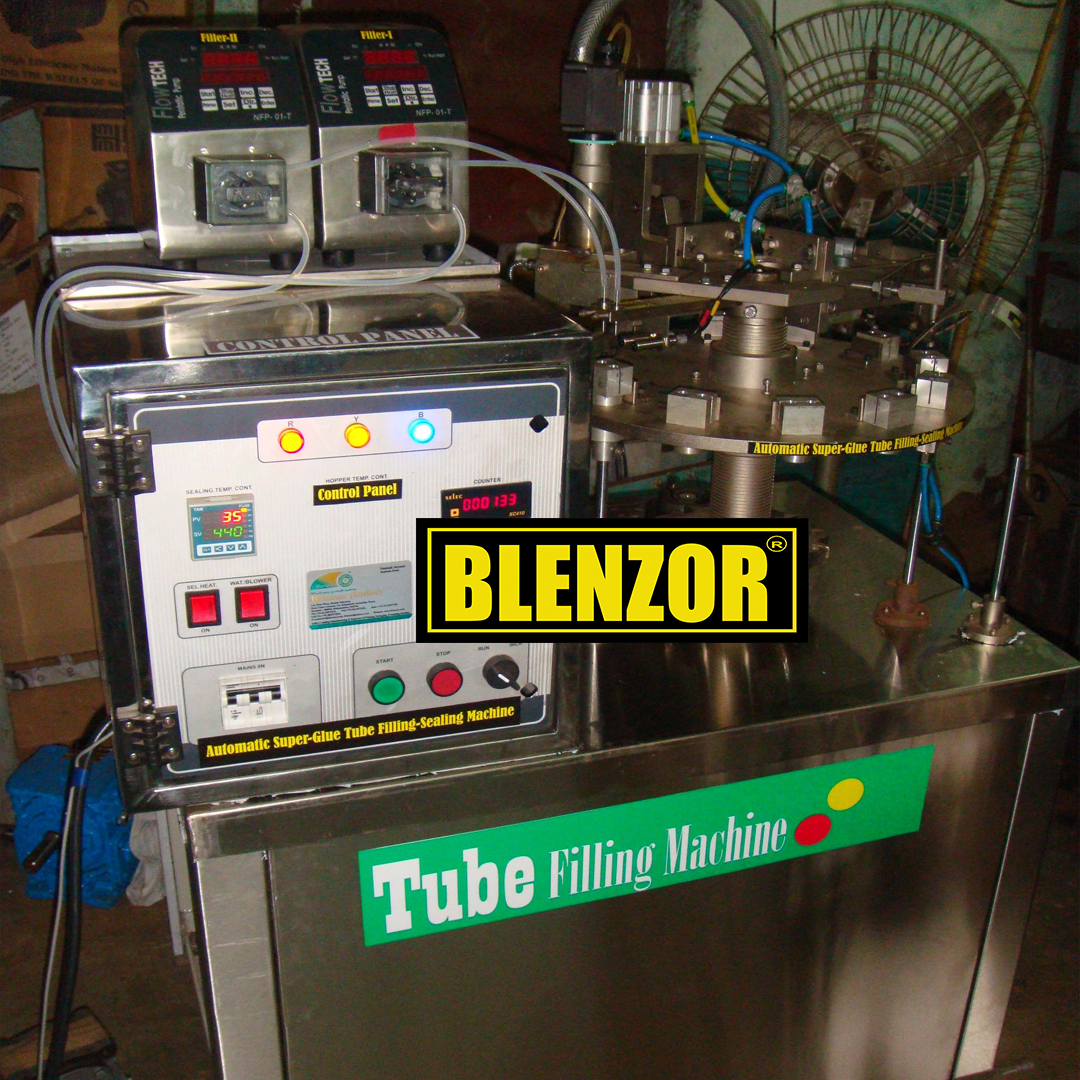

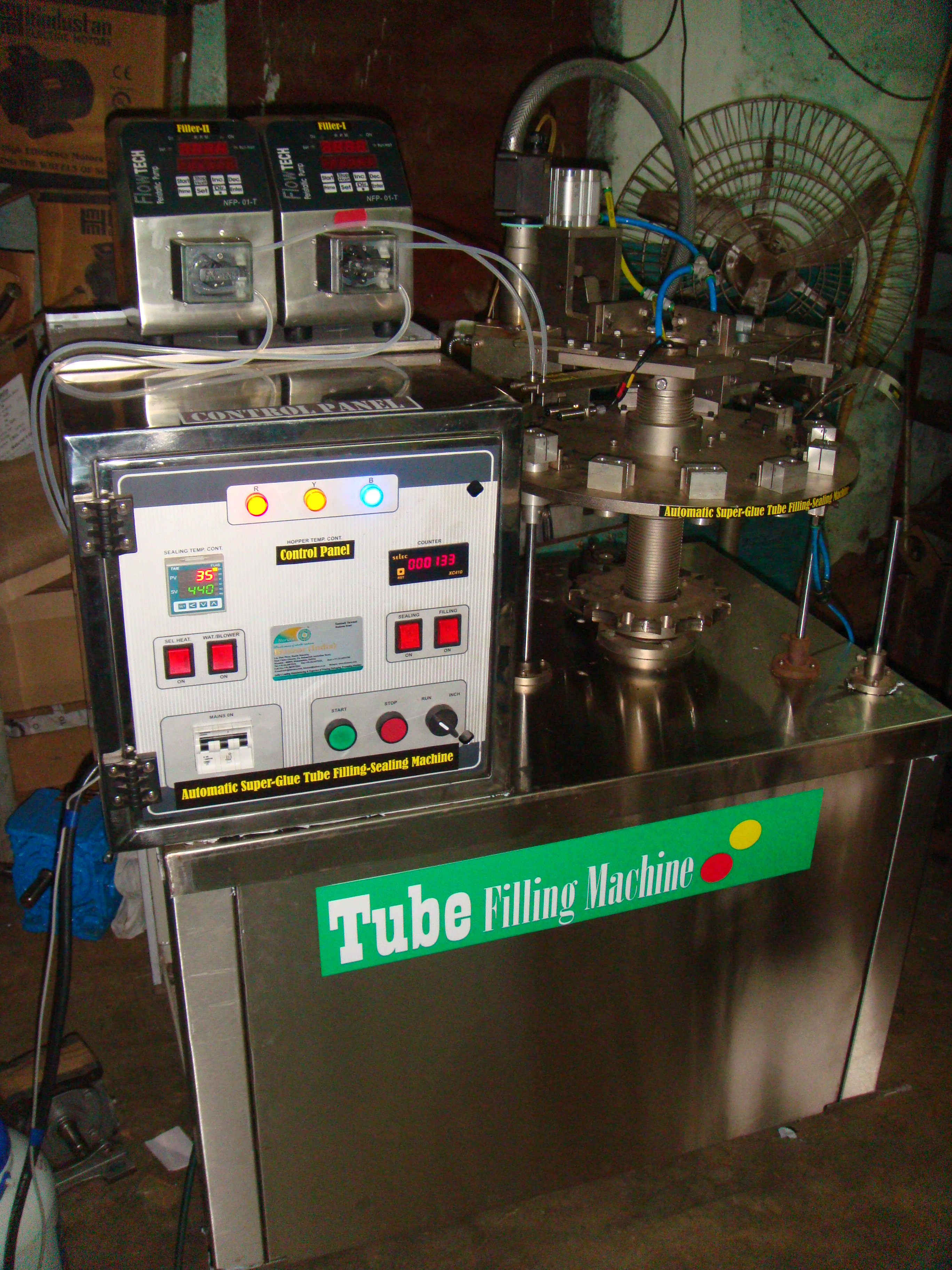

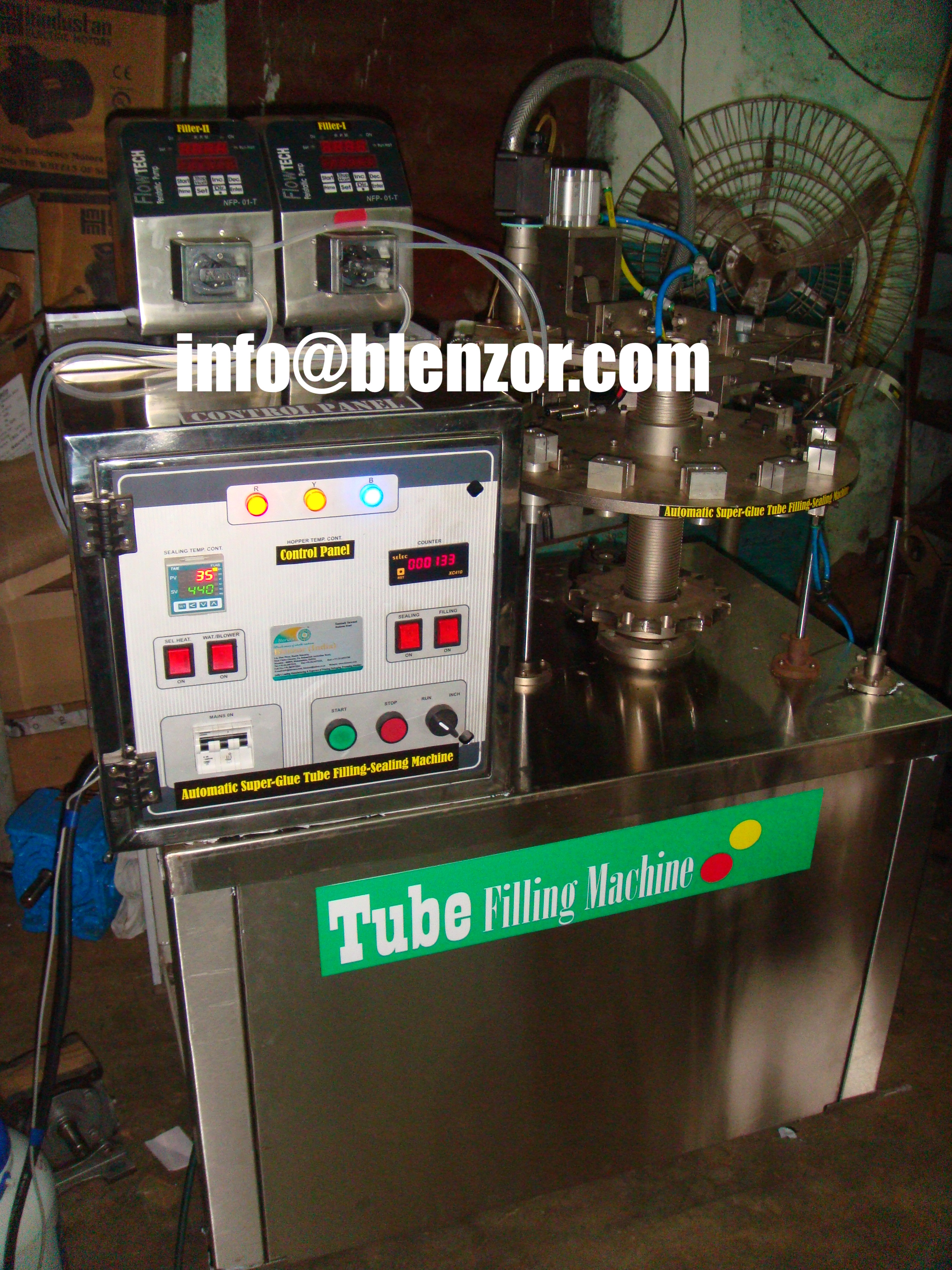

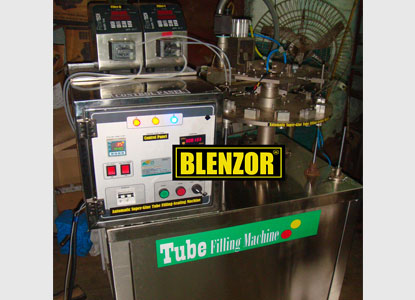

BLENZOR offers “Superglue Fevikwick Tube Filling Sealing Machine” suitable operating filling, sealing a quantity of viscosity of superglue, cynoacrylate in tubes |
|

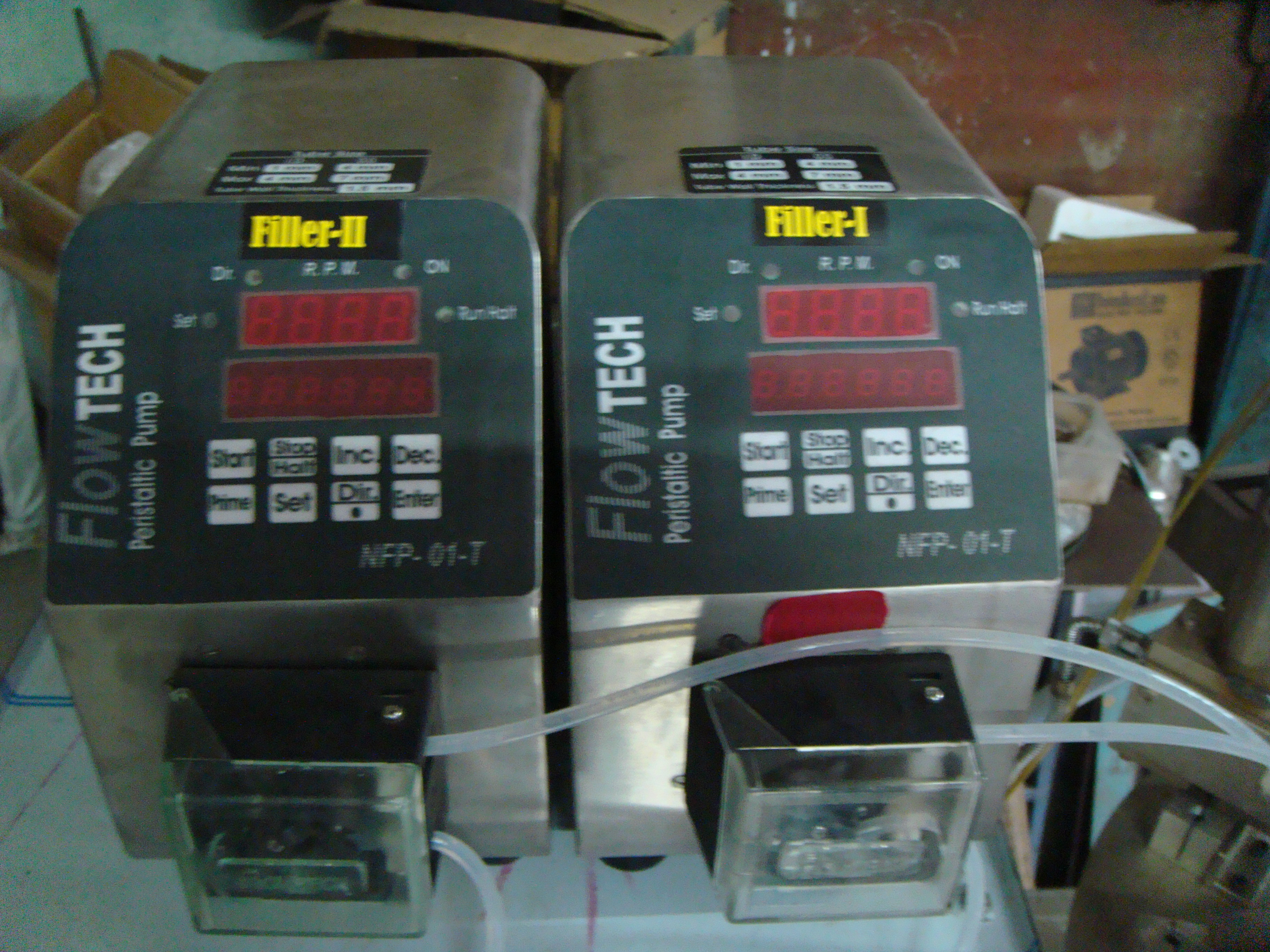

BLENZOR’s “Superglue Tube Filler” adopts Digital pump base filler unit with special grade pipe. |
|
| |
| Main Technical Details: |
|
Accuracy filling, balanced action, low buzz. |
|
Automatically finished overall process as tube supply, photoelectron register, inert gases filling (optional), material filling and sealing, batch number printing, finished products output. |
|
Adjust position outlay and position numbers video picture, quickly and accurately adjustment ( suitable for varies specification and varies product producing ) |
|
Mechanical, photoelectron, electric, pheumatic intergrative controlling, reaches no tube no filling function; warning if tube error positioned or pressure too low, automatic stop machine if open the protective door. |
|
| |
| Reliability: |
|
The part contact direct with superglue adopts special grade pipe. It use materials that is non-poisonous, no reaction with drug, non-corroding, no absorption from drug. |
|
Inner workshop should smears anti rust coat that withstand weak acid and weak base besides adopts austenite stainless steel. The parts with chemical treatment should have no rusteaten and no exfoliation. |
|
External surface should adopts austenite stainless steel wiredrawing board or sub-light treatment. |
|
Semi-closed outline board visible window adopts bright, static-free material as closed retaining band. |
|
Table-board adopts nodular graphite foundry iron. It takes stress relieving, annealing and natural seasoning treatment to reduce distortion after usage. |
|
| |
|
Fully automatic super glue tube filler and sealer owns the advantage of smooth surface, non-dead angle, non-toxic |
|
Automatic super glue tube filler and sealer produced by our company is in compliance with GMP requirements from the process of design, manufacture, assembly, testing, as well as parts of the main materials. |
|
It owns the advantage of smooth surface, non-dead angle, non-toxic, tasteless, non-polluting, clean and maintain easily. |
|
Compact conformation, easy operation. glue could be injected into the plastic,aluminum tubes through the filling system smoothly and accurately. |
|
It finishes the process of filling, sealing and lot number (the date of production) printing on the aluminum tubes through the robot hands. |
|
The max production capacity reaches to 4200 per hour; the filling volume error is within ± 1%. |
|
| |
| Industrial Catagories: |
| Fekwick tube filling machine,superglue tube filling machine,fevikwick filler,superglue filler,cyanoacrylate filler,cyanoacrylate tube filling machine. |
|
|
| Filling range |
0.5ml-10ml in tubes, bottles |
| Filling accuracy |
≤±1% |
| Working pressure |
0.5-0.7MPa |
| Power |
2KW |
| Production capacity |
4200 Tubes/hour |
| Tank capacity |
50Lit |
| Voltage |
380V,415, 3 Phase, 50Hz |
| Current |
20A |
| Size |
900mmx600mmx1200mmLBH |
| Weight |
600Kg |
|
|
|
| |
|
