Roll-on Filling Machine |
| |
|
| |
| |
- Product View
- Technical Specification
|
 |

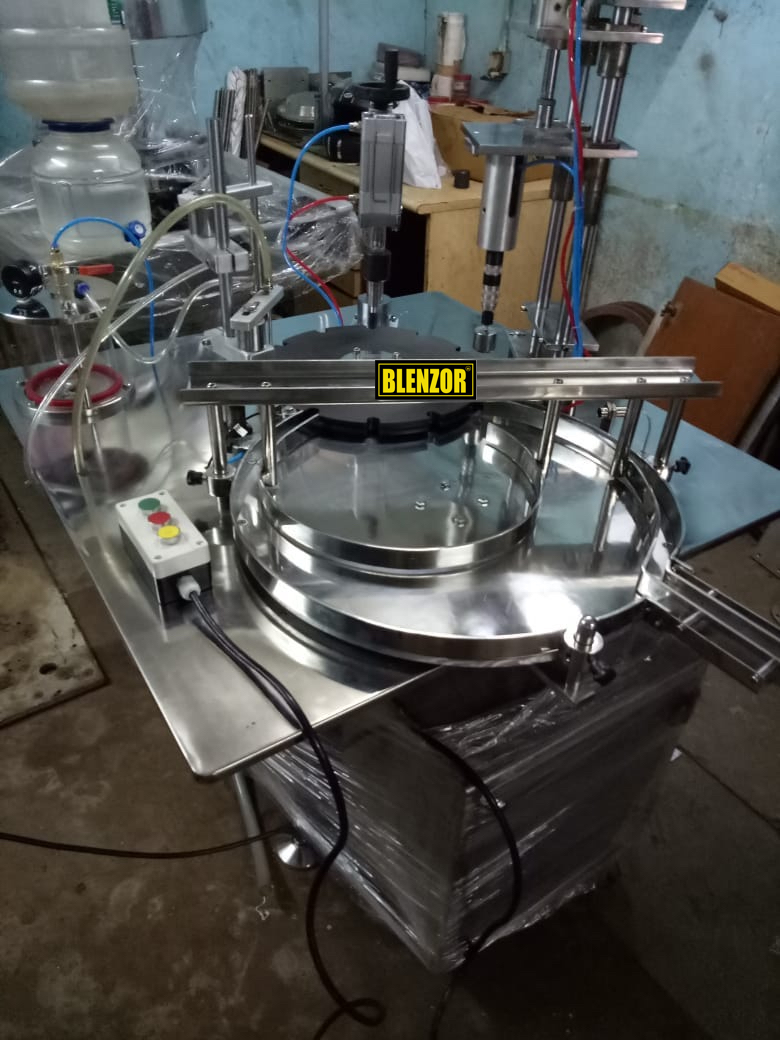

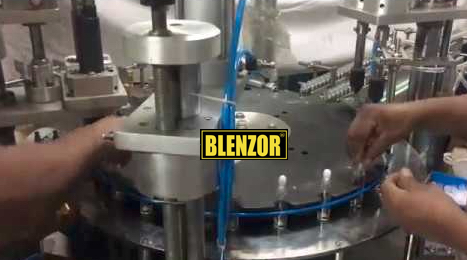

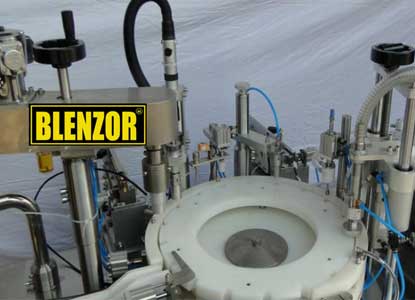

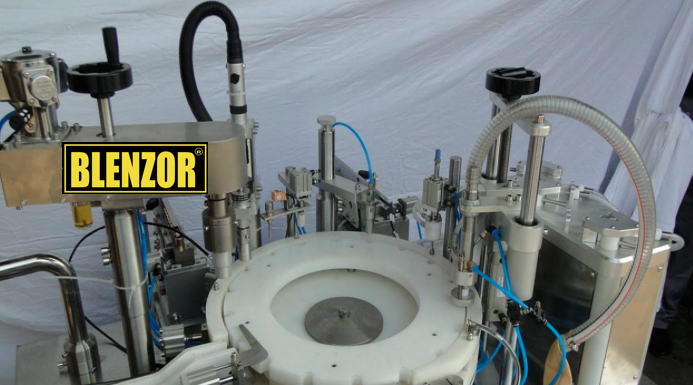

BLENZOR offers “Roll-on filling machine” for perfumes suitable for filling perfumes in bottles |
|
BLENZOR’s “Roll-on fillin machine” incorporated vacuum base filler with ball pressing and capper mechanism. |
|
BLENZOR’s “Rotary Roll-on Filler” works on electric motor driven turret with 4 filling and single crimping stations. |
|
| |
| Industrial Catagories: |
| Roll-on Perfume filling sealing machinery,perfume bottle filling and crimping machine,roll-on filling sealing machine,roll-on perfume filling with abll pressing machine,manual perfume filler,bottle filling machine of perfume,vacuum filler,vacuum perfume filling machine,vacuumetric perfume filling machine,automatic perfume filling machine,perfume filling automatic machine. |
|
|
| Machine |
Roll-on Filling Machine |
| Application |
Perfumes,Attars |
| Filling Range |
5ml-25ml |
| Operating System |
Automatic |
| Fill Accuracy |
+/-1% |
| Pump |
Vacuum |
| Tank |
50Lit. |
| Filler |
4 Head-Vacuum Filler with Pneumatric Drive |
| Crimping Unit |
2neumatic-Festo-Germany Make |
| Variable Speed Drive |
Delta Make |
| Turret |
12 station-Geneva Indexing mechanism with motor drive |
| Bottle Holder |
Cup type as per bottle diameter |
| Conveyor |
Infeed-Outfeed with turn-table & 0.5HP Motor Drive |
| Filling in |
Glass Bottles |
| Construction |
Stainless Steel |
| Contact Parts |
Stainless Steel 304 Grade/316 Grade (as per request) |
| Controller |
Electric Control Panel |
| Drives |
Electric Motor |
| Motor |
2HP |
| Additional Feature |
No-Bottle-No-Fill sensor |
| Power Consumption |
1.5KW |
| Air consumption |
5cfm – 5kg |
| Power Supply |
220V Single Phase,380-415V 3 Phase/50Hz |
| Dimension |
1800mmL x1200mmW x 1500mmH |
| Weight |
800kg |
| Output |
25 Bottles Per Minute |
|
|
|
| |
|
