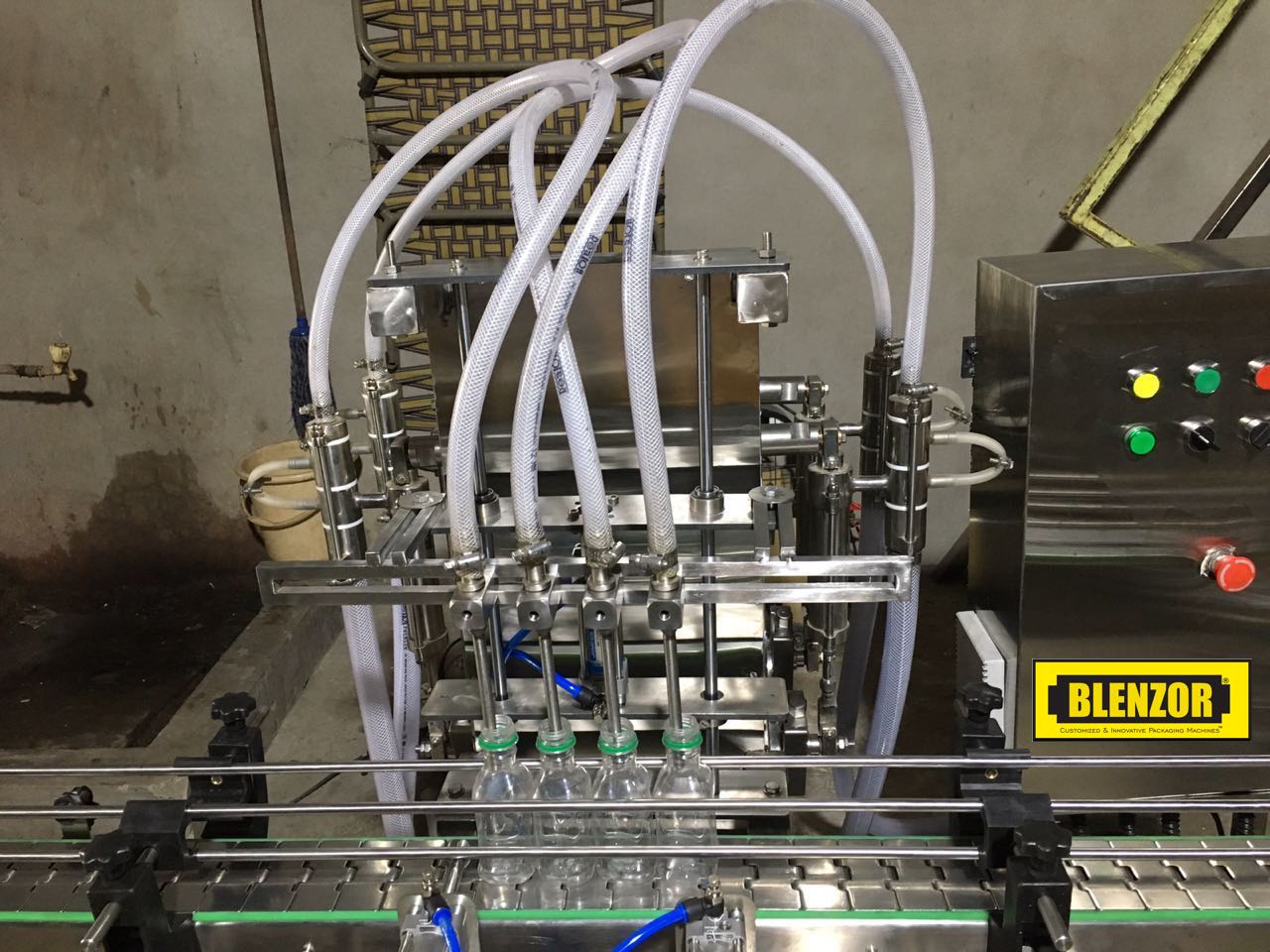

Pet Bottle Filler |
| |
|
| |
| |
- Product View
- Technical Specification
|
 |
BLENZOR offers “Pet Bottle Filler” suitable for filling free flowing and semi-viscous liquids in bottles,jars,containers etc. |
|
This “volumetric type liquid filler” is useful to fill desired quantity of liquids by syringe type filler mechanism |
|
BLENZOR’s “4 Head Volumetric Liquid Filler Machine” suitable for filling Pet Bottles incorporated piston pump mechanism suitable for filling free flowing and semi-viscous liquids |
|
BLENZOR’s “4 Head Volumetric Liquid Filler” works on positive displacement syringe pump principles control by electric motor . |
|
| |
| Industrial Catagories: |
| Pet Bottle Filling Line for Edible Oil, Mustard Oil Packing Line, 500ml,1Lit Mustard Oil Filling Machine, PET Bottle Filling Machine for Edible Oil, Cooking Oil PET Bottle Filling Machine, Filling Capping Labeling Machine for Cooking Edible Oil PET Bottles. PET Bottle Juice Filling Line,Automatic PET Filling Line for Water, Juices, Oil etc. |
|
|
| Machine |
Pet Bottle Filler |
| Operating System |
Automatic |
| Conveyor |
6 Feet Long |
| Variable Speed Drive |
Delta Make |
| Application |
Cooking Oil, Edible Oil, Vegetable Oil, Juices, Hair Oil, Hand Wash, Refined Oil, Mustard Oil, Groundnut Oil |
| Filling Range |
100ml-250ml
500ml-1000ml
(All sizes can be done on one machine but separate pistons are required for each range) |
| Filling in |
Bottles |
| Contact parts |
SS316 |
| Storage Tank |
200Lit. (optional) |
| Controller |
PLC based-Delta Make |
| Drives |
Electric Motor |
| Motor |
2 HP |
| Fill Accuracy |
Volumetric (1-2%) |
| Power Consumption |
1.5 KW |
| Air consumption |
5cfm – 5kg |
| Power Supply |
220V Single Phase,380-415V 3 Phase/50Hz |
| Dimension |
1800mmL x900mmW x 1500mmH |
| Weight |
500kg |
| Output |
25-40 Fills Per Minute (as per product flow characteristics) |
|
|
|
| |
|
