Front Back Self Adhesive Labeler, Auto Front Back Sticker Label Plant

Product View
Technical Specification

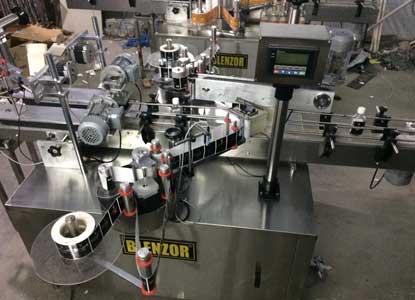

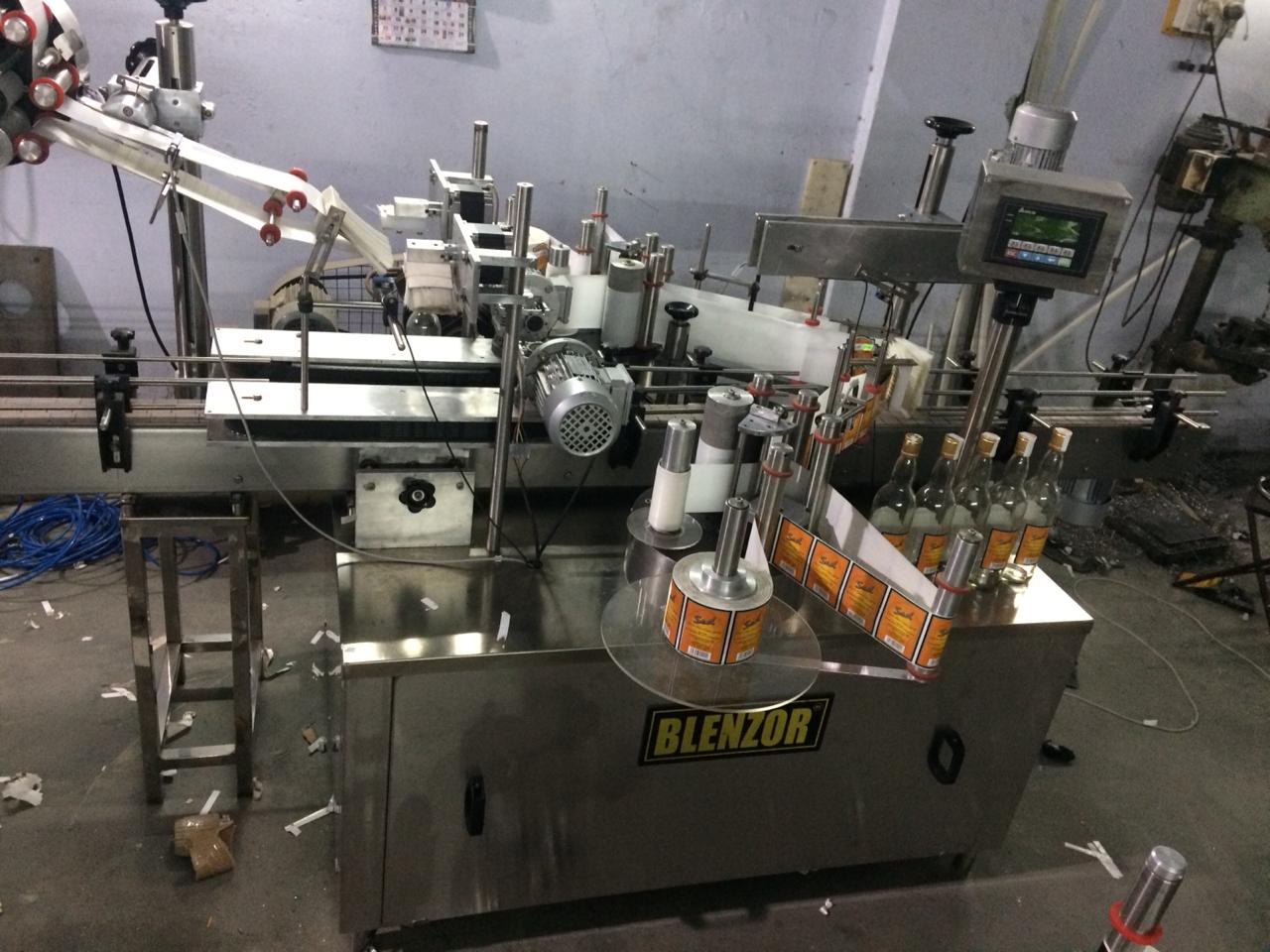

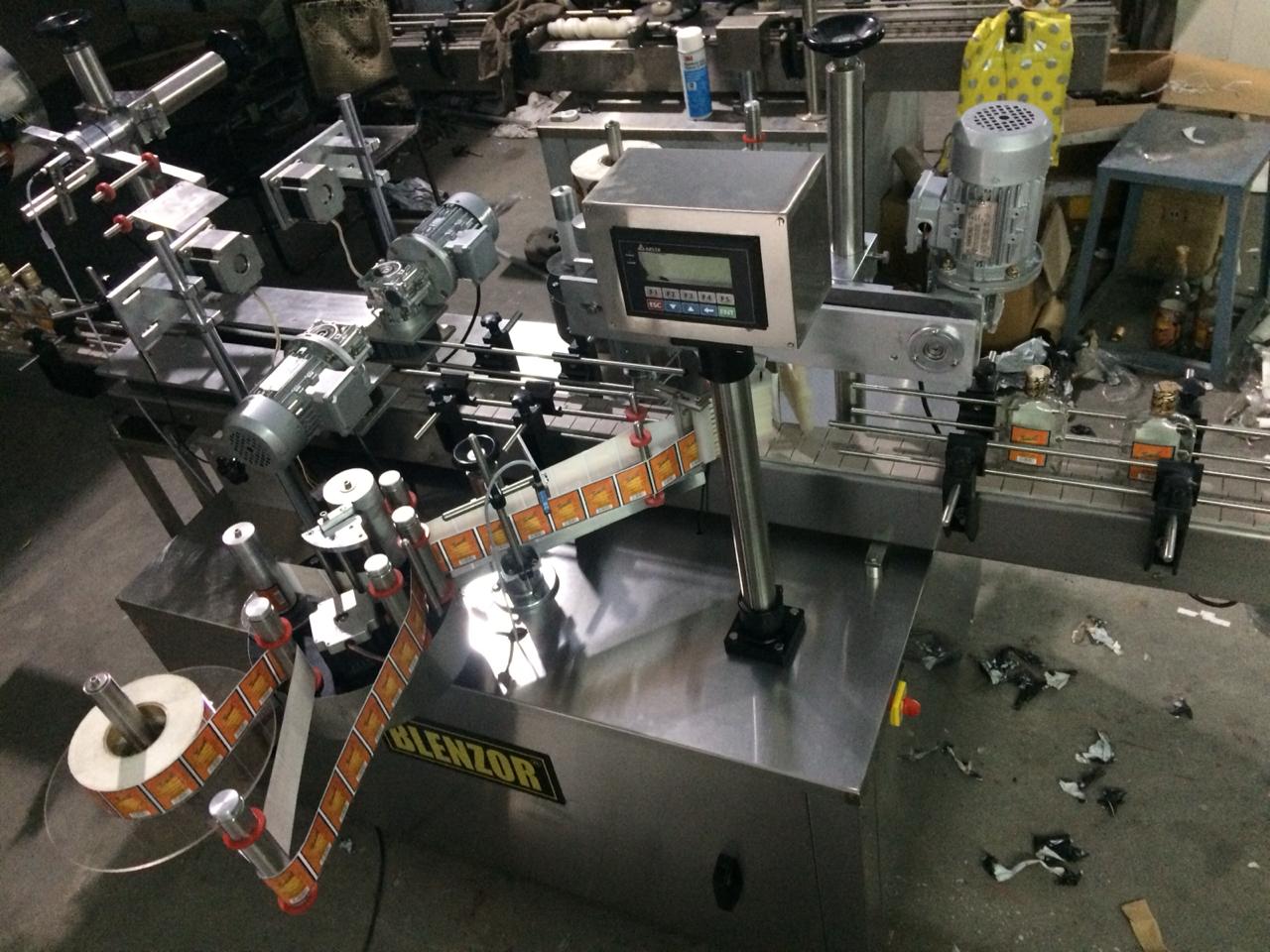

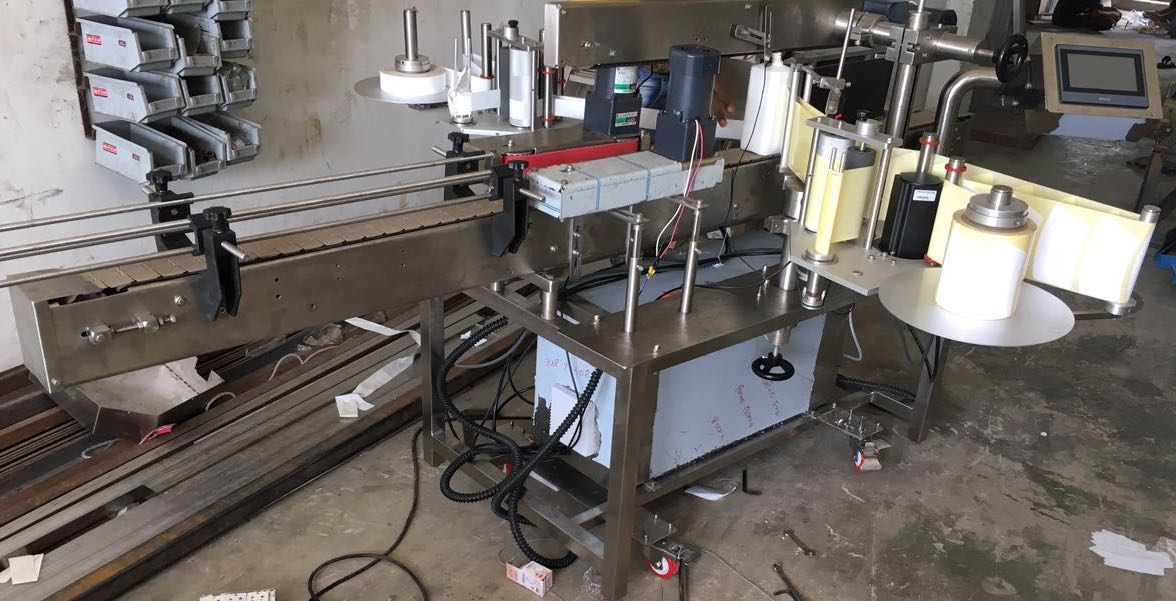

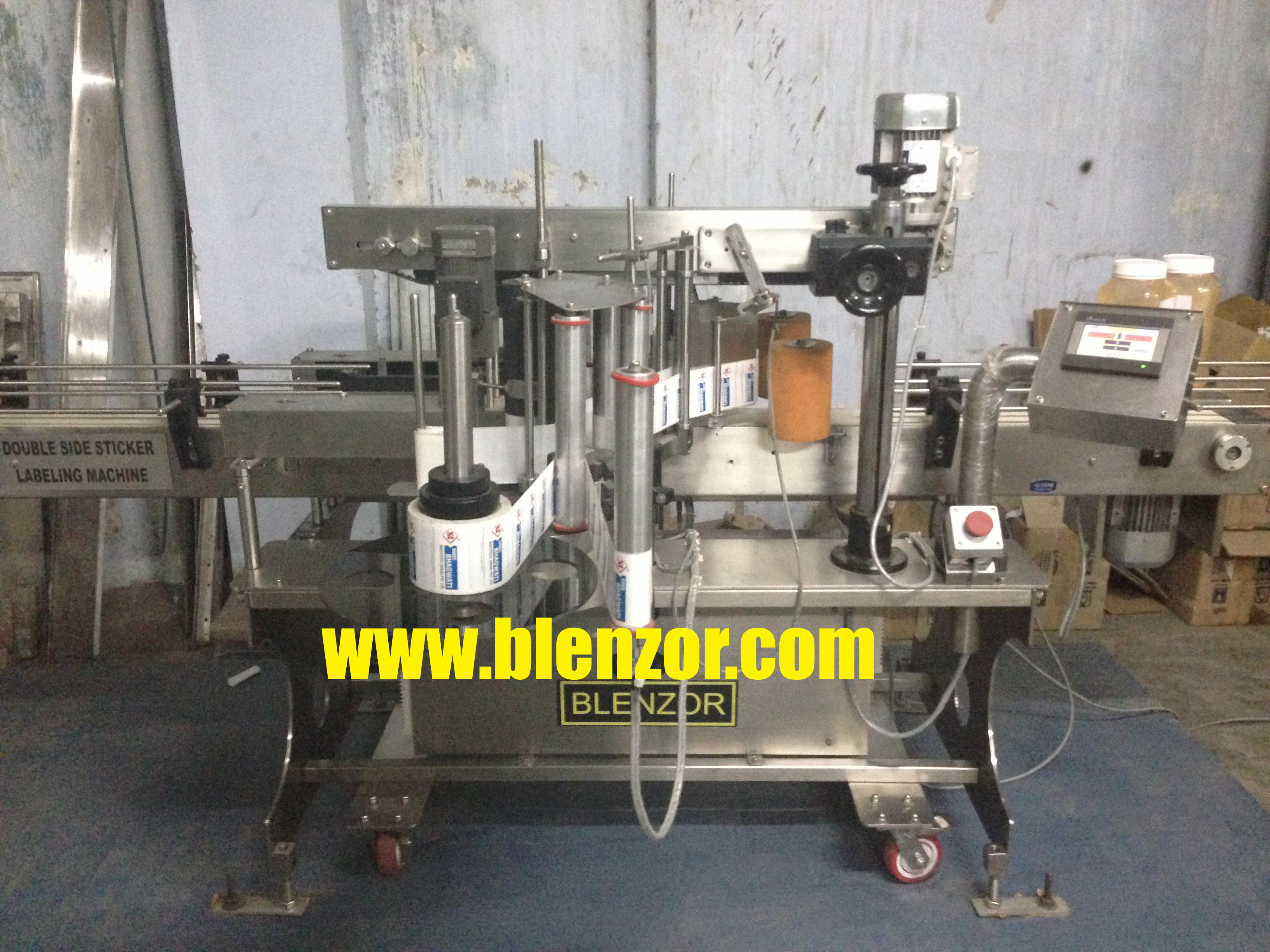

	BLENZOR offers “Front-Back Self Adhesive Labeler” for applying the sticker labels in roll form on round/flat bottles.
	BLENZOR’s “Double Side Labeler” adapts self adhesive roll formed sticker labelling technology.
	BLENZOR’s “Dual Side Self Adhesive Sticker Labeler” is bottle labelling works on Stepper Motor driven as well as Servo Motor driven label applying technology.

Features:

	Match cG.M.P standard. Suitable for pharmaceutical and all other industries.
	Material uses Frame and main components are made from SS304 stainless steel and anodized aluminum.
	Suitable for a large of product size. Can label various kinds of products.
	Prompt window is show automatically when wrong operation.
	User-friendly display that everyone can operate without engineer.
	Values of control was using well-know unit (mm sec and etc.) Not unknown unit.
	Label Applicator uses stepper motor that accurate and stability.
	Could use the Label Reel up to diameter 380mm. The Reminder not changes friction-pad that brings hide dust.
	Auto-teach the label sensor.
	Auto-set the label length.
	Auto-set the label timing.
	Hot Stamp Printer (stand optional) could prep-print date/batch code on the label.
	The print direction could turn 90 without squander foil. The print position could adjustment, and the adjustment area of print position was large that was 300mm × 150mm.
	The machine would stop labeling and alarm automatically when non-foil.
	More specific devices/functions could be optional for production line, such as inspector, Rejecter, Container Flipper, 90 Degree Card Turner, Barcode Reader, CCD Camera and etc.

Industrial Catagories:

Labeler,label applicator,bottle labeling machine,single side labeler,sticker labeling machine,self adhesive labeling machine,labeling machine for bottles,wrap around labeling machine,side labeling machine,front back labeling machine,double side labeling machine,sticker labeler for bottles,2 side labeling machine,self adhesive labeling machine,labeler for self adhesive sticker labeling,stickering machine,label pasting machine,label applying machine,container labeling machine,jar labeling machine,tube labeling machine

Machine	Front Back Self Adhesive Label Applicator
Application	Bottles,Containers,Jars of Pharmaceuticals Medical Bottles Foods Lubricants Adhesive Oils Chemicals Rectangular Shape,Round Shape
Bottle Dia/Size	Min.15mm- Max.90mm
Label Sizes	Min. 15mmx35mm Max.90mmx150mm
Operating System	Automatic
Label Accuracy	+/-2mm
Conveyor	SS Slat
Label	Roll Form Self Adhesive
Conveyor Drive	0.5HP Gear Motor-Bonfiglioli-Italy Make
Variable Speed Drive	Delta Make
Construction	Stainless Steel
Controller	Micro-Processor based or PLC (optional)
Covers	Stainless Steel
Label Applicator	Imported Stepper Motor Driven or Servo Driven-Panasonic (Optional)
Label Release Sensor	Imported
Labeling Spool (Core)	Inner Dia-76mm Outer Dia-380mm
Drives	Electric Motor
Motor	0.5HP
Additional Feature	Product Counter
Power Consumption	2KW
Air consumption	5cfm – 5kg
Power Supply	220V Single Phase,380-415V 3 Phase/50Hz
Dimension	2100mmL x1800mmW x 1800mmH
Weight	450kg
Output	50-60 Bottles Per Minute
