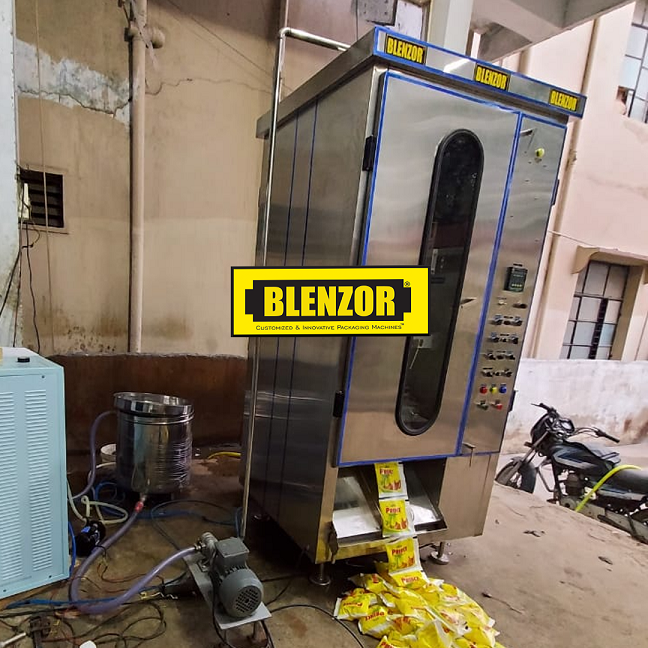

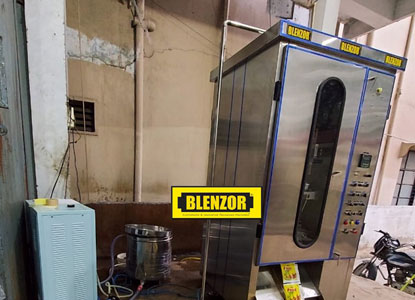

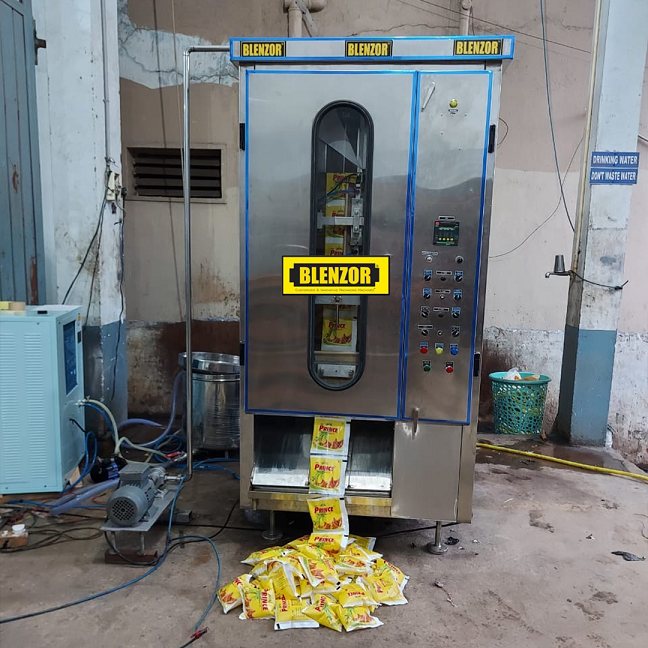

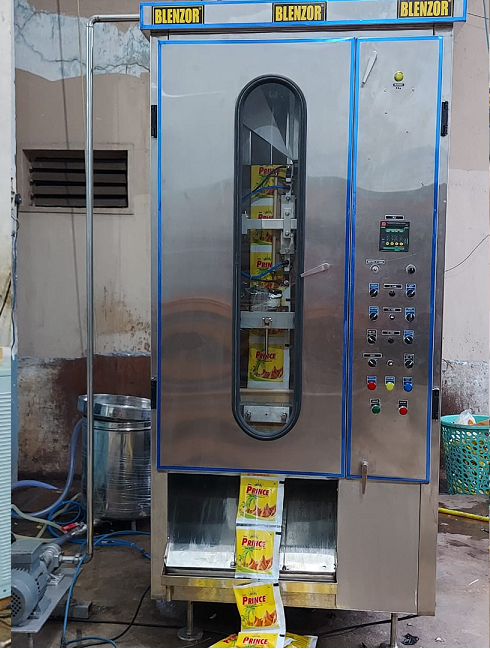

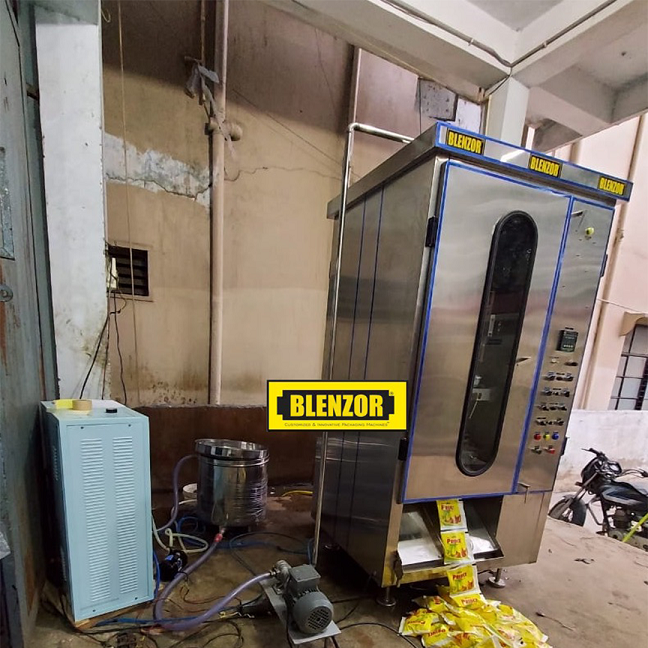

Cooking Oil Pouch Packing Machine |
| |
|
| |
| |
- Product View
- Technical Specification
|
 |
BLENZOR introduces “Cooking Oil Pouch Packing Machine” for packing edible oil,cooking oil,refined oil,mustard oil etc. |
|
BLENZOR’s “Cooking Oil Pouch Packing Machine” also known as Form Fill Seal Machine is specially designed for accurate dispensing of Cooking Oil in form fill seal sachets |
|
BLENZOR’s “Cooking Oil Pouch Packing Machine” is suitable for all kinds of heat sealable packaging |
|
| |
| Features: |
|
Adopt photoelectric tracing technology and digital input to ensure accurate sealing & cutting position. |
|
Digital temperature controller for each sealing zone. |
|
Adopt dual frequency conversion controller, the length of bag can be set and cut at any time without the need to adjust trail operation. It is time saving and film saving. |
|
Can set the machine stopping position, no sticking to the knife and no film wasted. |
|
Accurate Feeding of the product by piston base filler driven by Electric Motor |
|
| |
| Industrial Catagories: |
| Cooking oil pouch packing machine,oil sachet machine,sachet oil machine,pouch packing machinefor oil,edible oil pouch machine,refined oil packing machine in pouch,oil bagging machine |
|
|
| Machine |
Cooking Oil Pouch Packing Machine |
| Application |
Cooking Oil
Edible Oil
Mustard Oil
Refined Oil
Vegetable Oil |
| Filling Range |
250ml-1000ml |
| Packaging Material |
Any heat sealable laminate |
| Filler type |
Piston Pump |
| Controller |
Electric Controller, PLC Based (Optional) |
| Production Output |
18 Sachets Per Minute |
| Pouch Size |
Length-0-200mm
Width-0-100mm |
| Sealing |
4 Side Seal
3 Side Seal |
| Paper Pulling |
Mechanical Roller |
| Pouch Cooling |
Online Inbuilt Cooler |
| Sealing Heaters |
Strip Type- 1KW at each sealer zone |
| Motor |
1.5HP |
| Pneumatics |
N.A |
| M.O.C. (Material Of Construction) |
Stainless Steel |
| Sealing Type |
Diamond /Knurling /Lining type |
| Electric Power |
110V,220V Single Phase,50-60Hz |
| Power Consumption |
2.5W |
| Dimensions |
1500mmx 1200mmx 1800mm LBH |
| Weight |
500Kg |
|
|
|
| |
|
