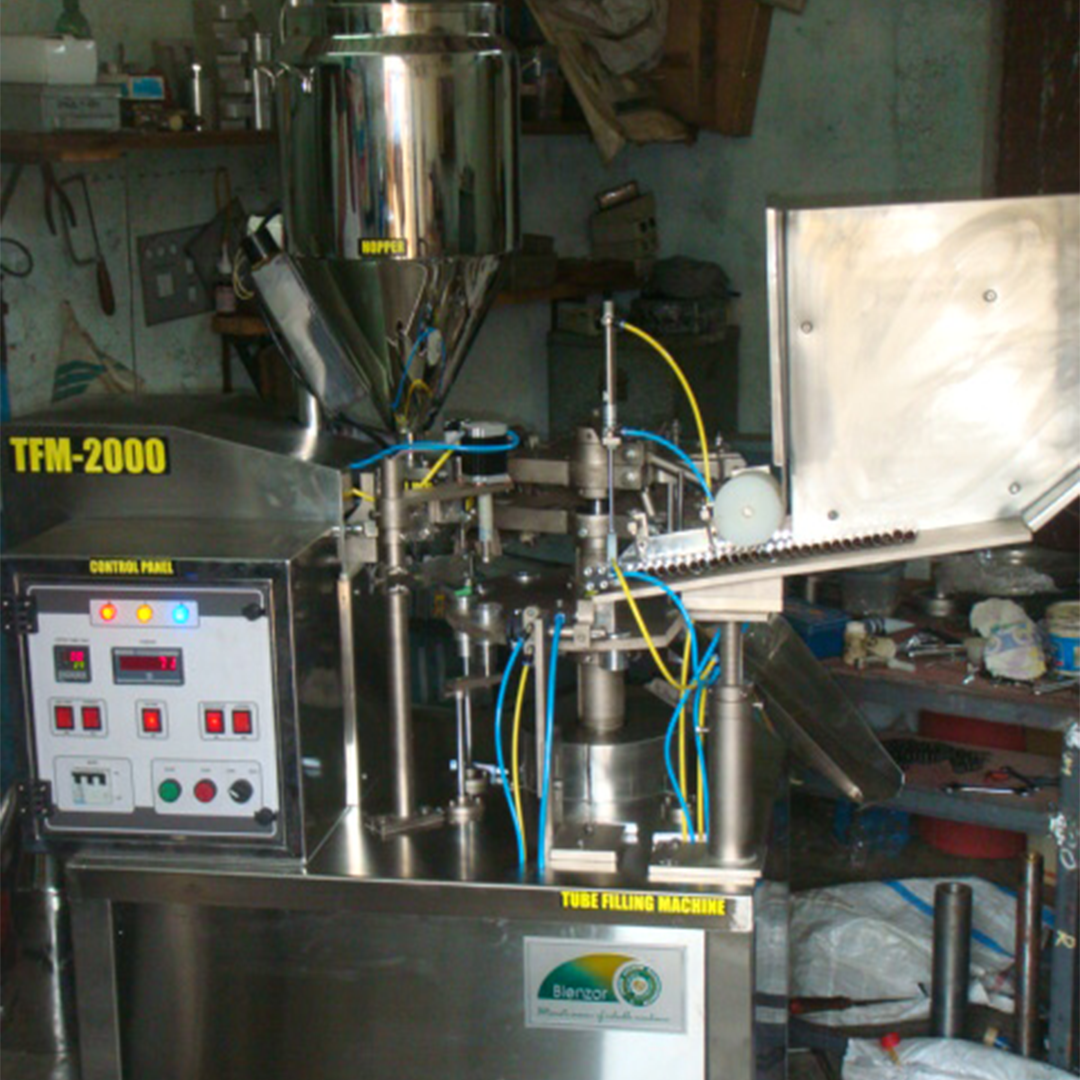

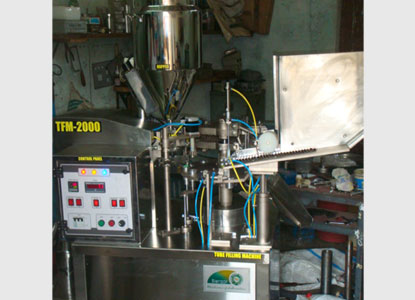

(5 Gms. to 30 Gms.) or (30 Gms.to 100 Gms.) or (100 Gms. to 250 Gms.) Any one of the three sets will be provided against requested specification in your order.
Machine is suitable for 5 gms to 200 gms with inter changeable filler piston pump.
Product , Contact Part:
Stainless Steel 304 or 316 grade

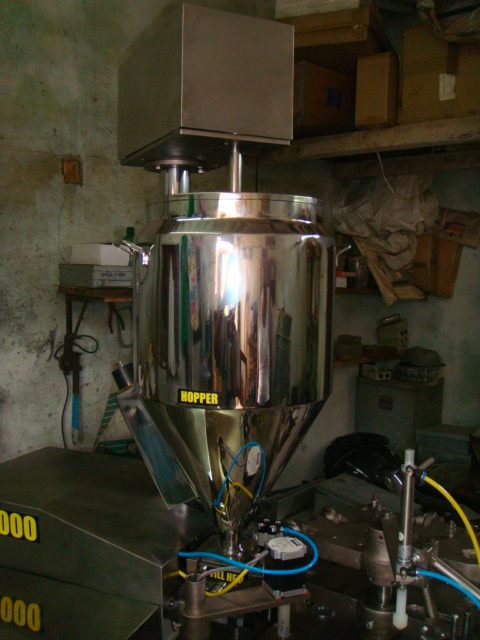

Hopper:
45 Kg capacity (Working Volume 40 Kg).
Filling Volume setting:
Cam for Valve operation as well Fine Tuning adjustable Control System.
No tube - No Fill Device:
Activate Sensor with Electrical Logic Control system.
Filling Accuracy:
± 1%.
Output per Minute:
Up to 35 Tubes/ Min. In Single Hopper One Nozzle (depending on the Fill sizes).

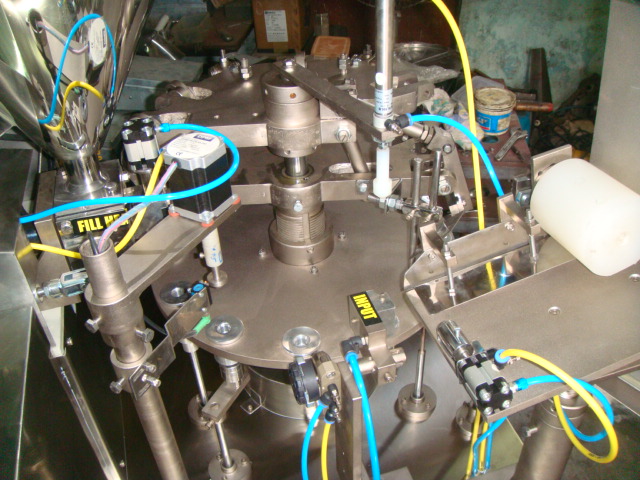

Indexing Device of Turret:
Manifold Indexer unit

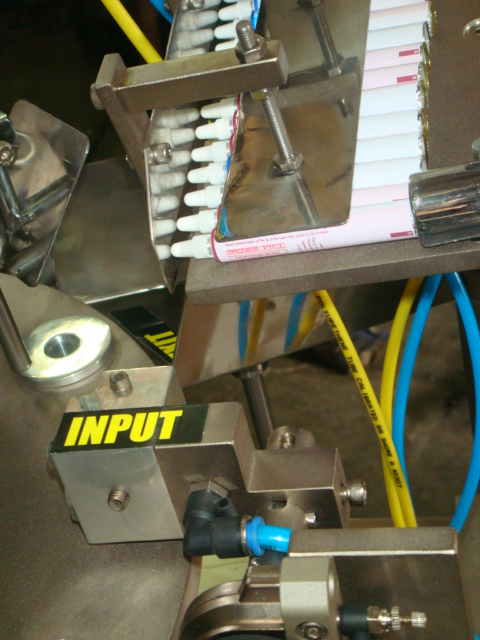

Empty Tube in feeder:
Casset type
Change Part :
Piston Pump Housing of 30gms to 100 gms, , Tube Holder Cups, Filling Nozzle,
Tube Orientation Device:
Top Drive (Photocell Unit) Make Std. and Stepper Motor & ‘I’ Mark Sensor DETALOGIC Make. At the separate station.

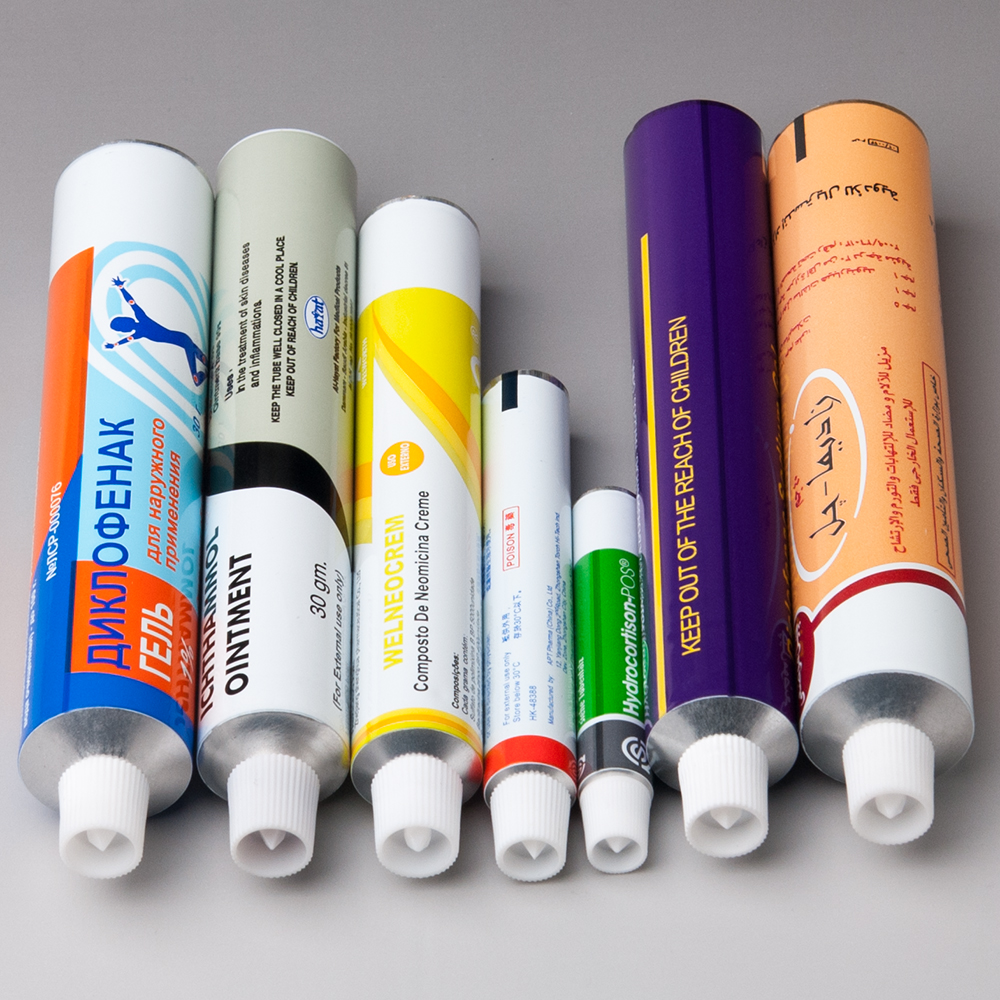

Aluminium Tube Crimping Unit
Pneumatic Operated- Festo-Germany Make
Folding Unit
2-3 Folds as desired ,Pneumatics operated-Festo-Germany Make
Trimming device:
NA
Tube ejection:
Automatic Filled Tube ejection at separate station.
Machine System Description:
Manual Tube Feeding, ‘I’ Mark Orientation, Filling, Crimping, Batch Coding and filled Tube Ejector Automatically.
Machine security:
Overload clutch for centering and micro switch cut-off system.
Control Panel:
Necessary functional features like emergency stop, re-set, inching, and user friendly, Electrical logic system are standard with the machine, with interlock & indication on the main operator’s of panel to Electrical logic Control.
Motor:
1. HP; 1440 RPM 3Ph. 440V AC. Standard Make
Production Speed Control
Variable speed control Suitable VFD Drive makes DELTA.
Production Counter:
Digital Six Digit Production Counter.
Gear Box:
Suitable Gear Box Ratio 30-1 Make PREMIUM/P.G. Drive with Separate Drive.
Production Counter:
Activate Sensor with Electrical Logic Display 6 mm. Size, 6 Digital Counter.
All Pneumatic components:
FESTO-GERMANY Make.
Machine Entire frame:
Fabricated in Machine Entire frame Mild Steel With Powder Coated & will be in hard Chrome plated & duly ENP coated and all other cams and levers will be in graded casting & alloy steel. With all side covers in S.S.-304.
Power Input:
1KW
M/c. Dimensions :
(L) 900 x (W) 1200mm x (H) 2450mm.
M/c. Weight Approx:
Overall Wt. Approx. 500 Kgs.
Utilities Required :
Input Power :
3 - 4 kW. at Site: 3 Phase/ 415V. ±15%, / 50Hz. ±5%, and Neutral. (As applicable)
Compress Air :
Client to Provide Instrument Quality Moisture Free Air supply for Smooth Filling Machine Function the Continuous Air to be supplied at Site: 6 Kgs. / Sq. Cm. Pressure At 10 CFM Max.
