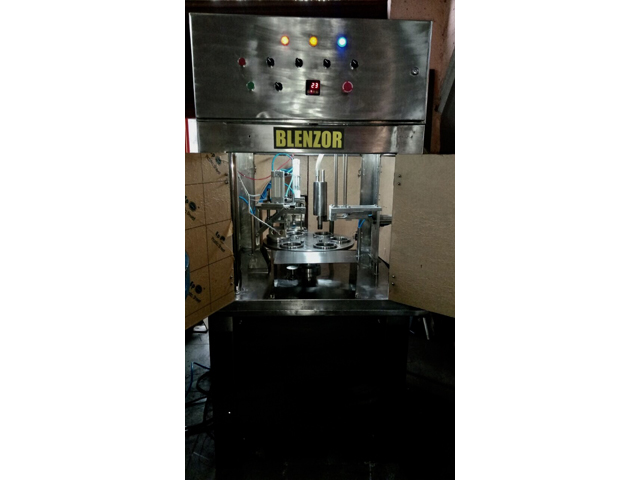

| Yogurt Curd Cup Filling & Sealing Machine |
| |
|
| |
| |
- Product Details
- Operational Description
- Enquiry
|
 |
Rotary Machine |
|
Suitable for filling curd/yogurt/lassi/juice/liquids/jam/jelly |
|
Filling Range: 50ml-500ml |
|
Cup: PP/HDPE |
|
Max Cup Dia: 95mm |
|
SS316 Contact Parts |
|
Stainless Steel Covers |
|
Piston Filler unit |
|
Automatic Foil Pick-up |
|
Pneumatic Driven Foil Sealing Unit |
|
Digital Temp. Controller |
|
Drip Free Filling Nozzle |
|
100Lit Storage Hopper for product storage ( Optional) |
|
1HP Main Motor Drive |
|
Geneva Indexing mechanism |
|
Control Panel |
|
Power: 380V, 3 Phase,50Hz/3KW |
|
Compressed Air required: 4 kg/cm2 |
|
Dimension: 1200mmL x 1200mmW x 1800mmH |
|
Weight: 500Kg |
|
Speed: Up to 1000 Cups/Hour |
|
| |
| Industrial Catagories: |
| curd cup filling, yogurt cup filling, juice cup filling, water cup filling, lassi cup filling, cup filling sealing, plastic cup filling sealing, dairy cup filling sealing, ice cream cup filling sealing etc. |
|
|
| Cup has to stack in cup hopper, the cups will pick up and go to filling station, each cup gets filled and then goes to next station where it will pick up the foil from stacked foil hopper, it will again go to next station for sealing, the sealed cup then emerge out. |
|
| This machine is mechanical motor operated but compressed air is required for foil pick as well as sealing unit. |
|
| Conveyor is required at exit point if you want to install batch date coding on it.So both are optional |
|
|
| |
|
