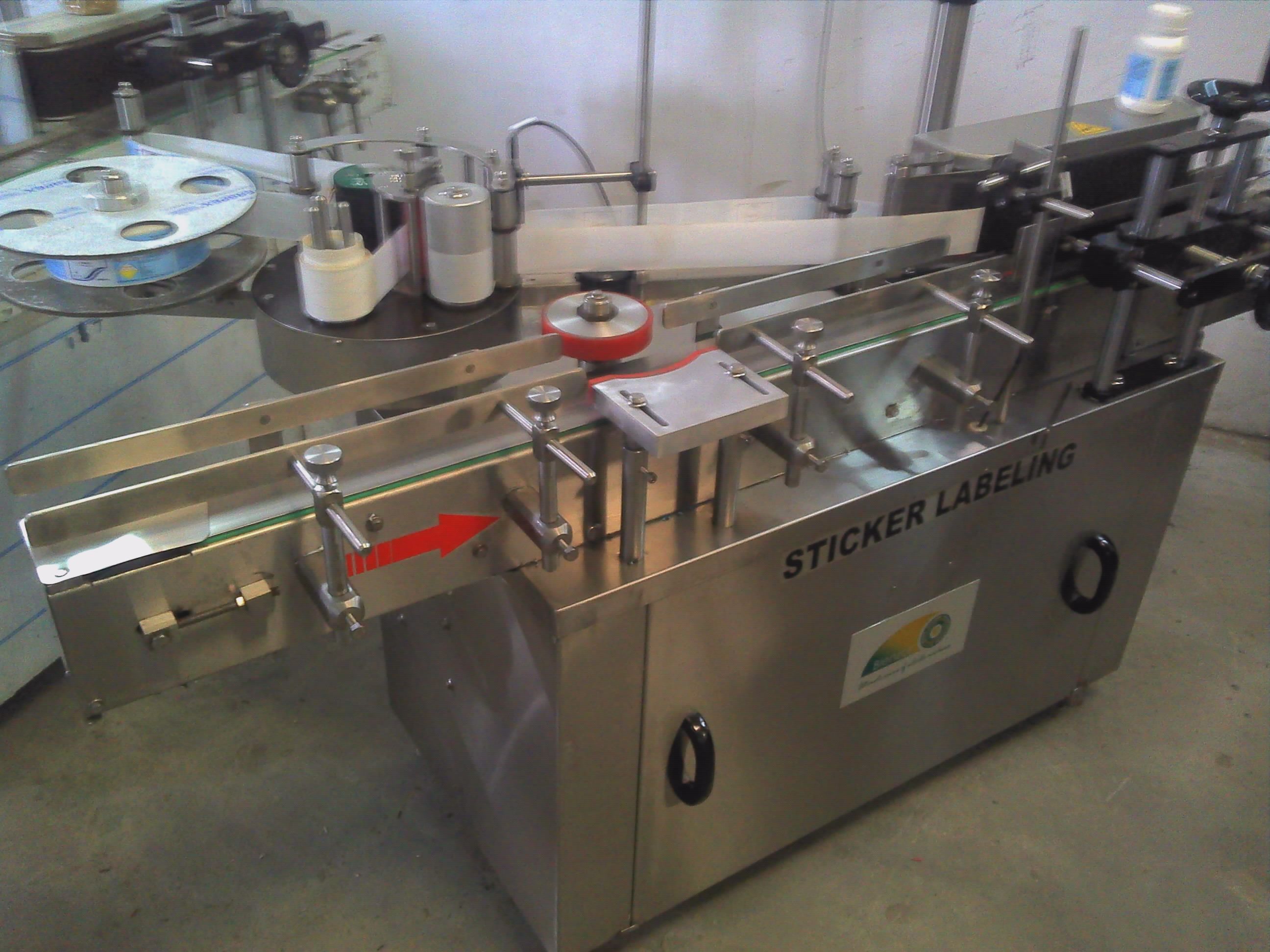

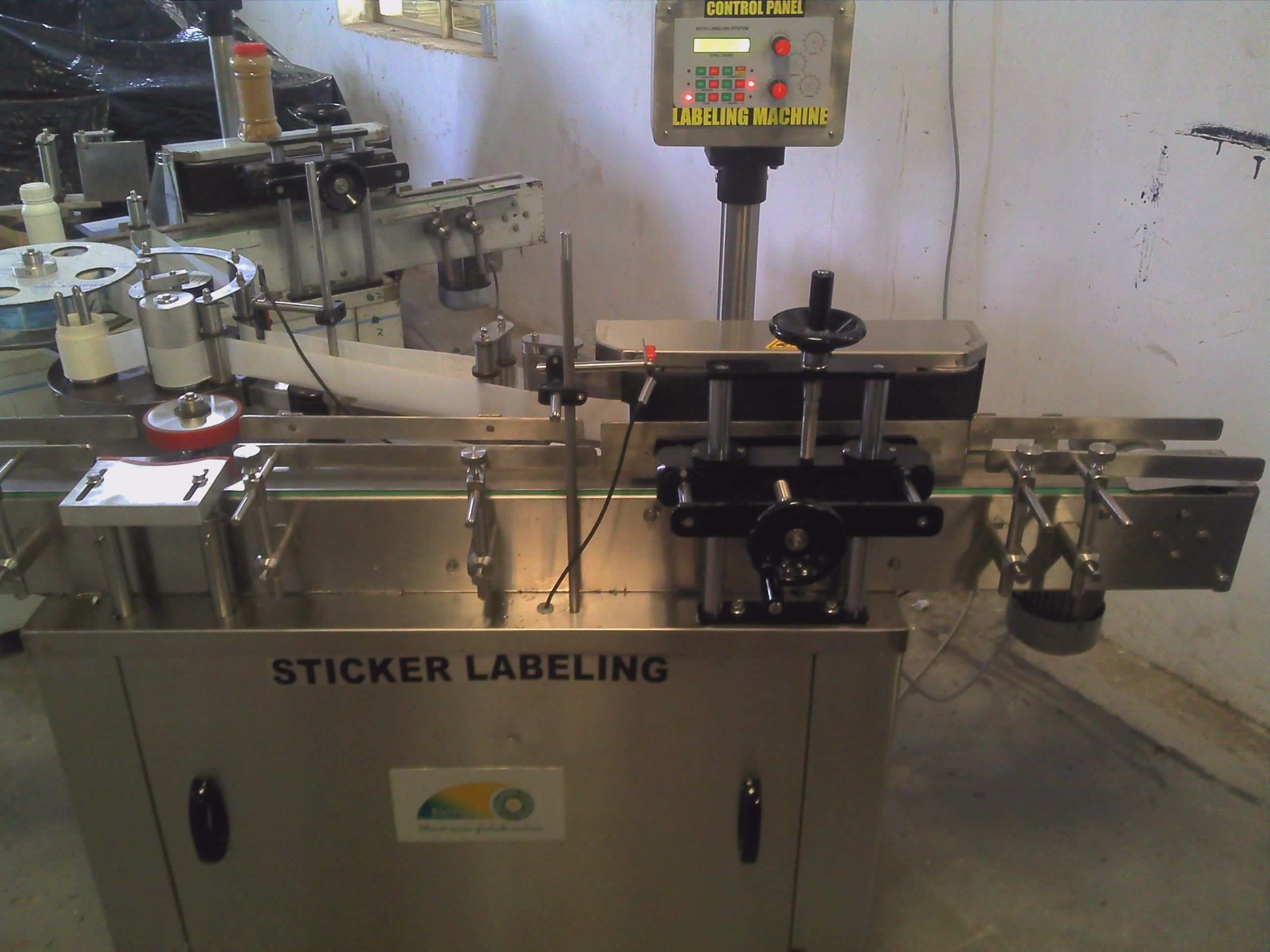

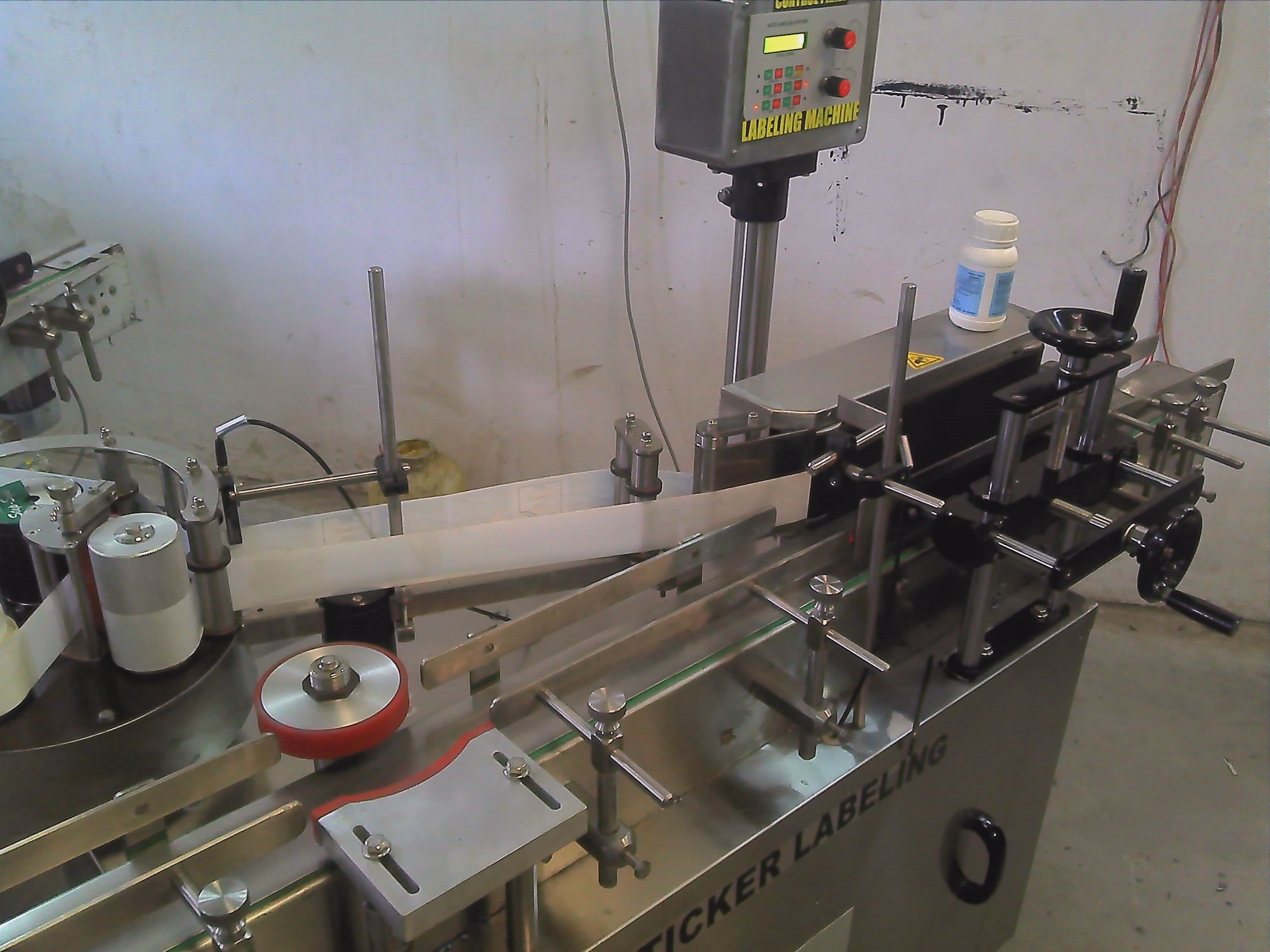

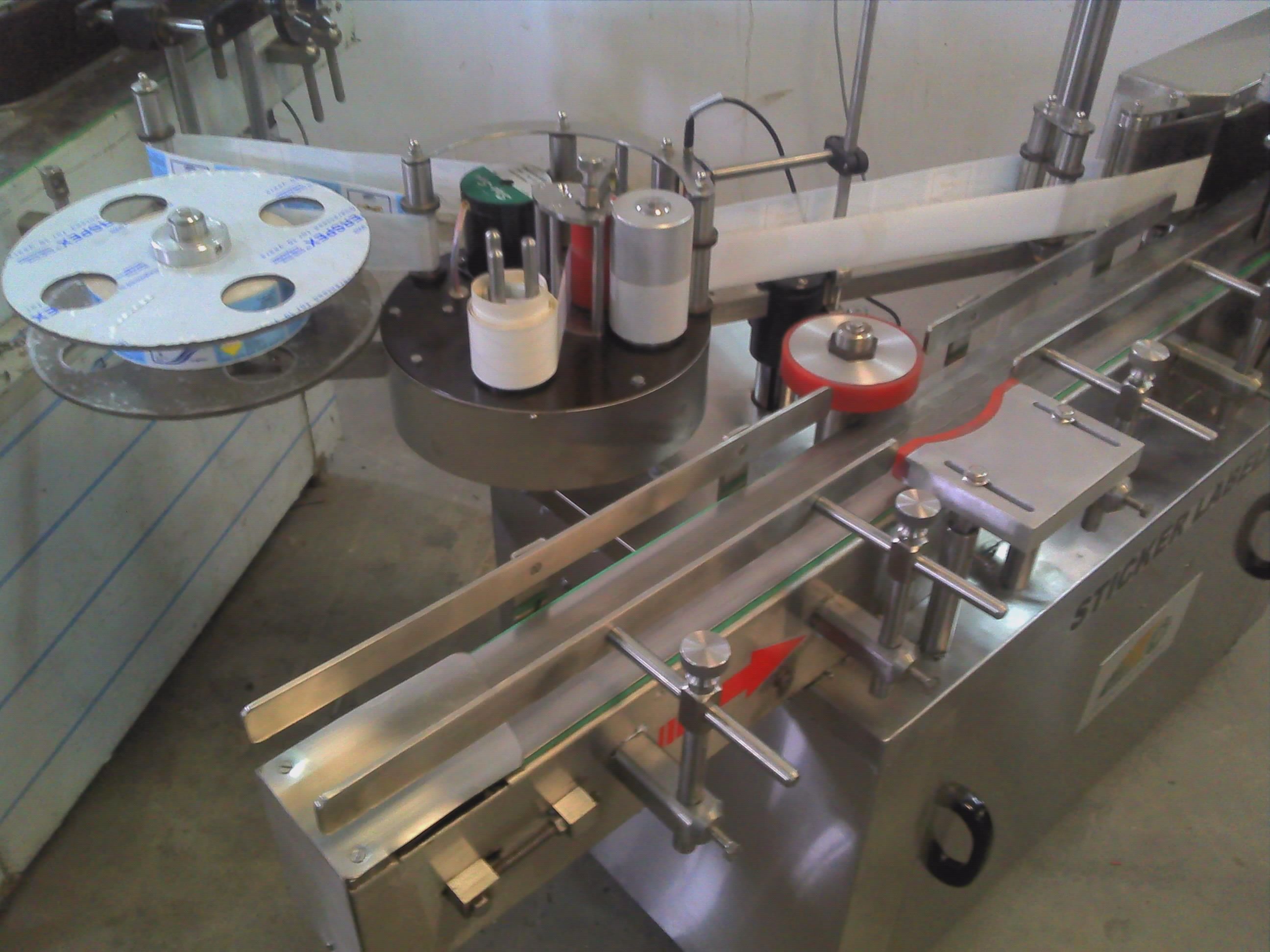

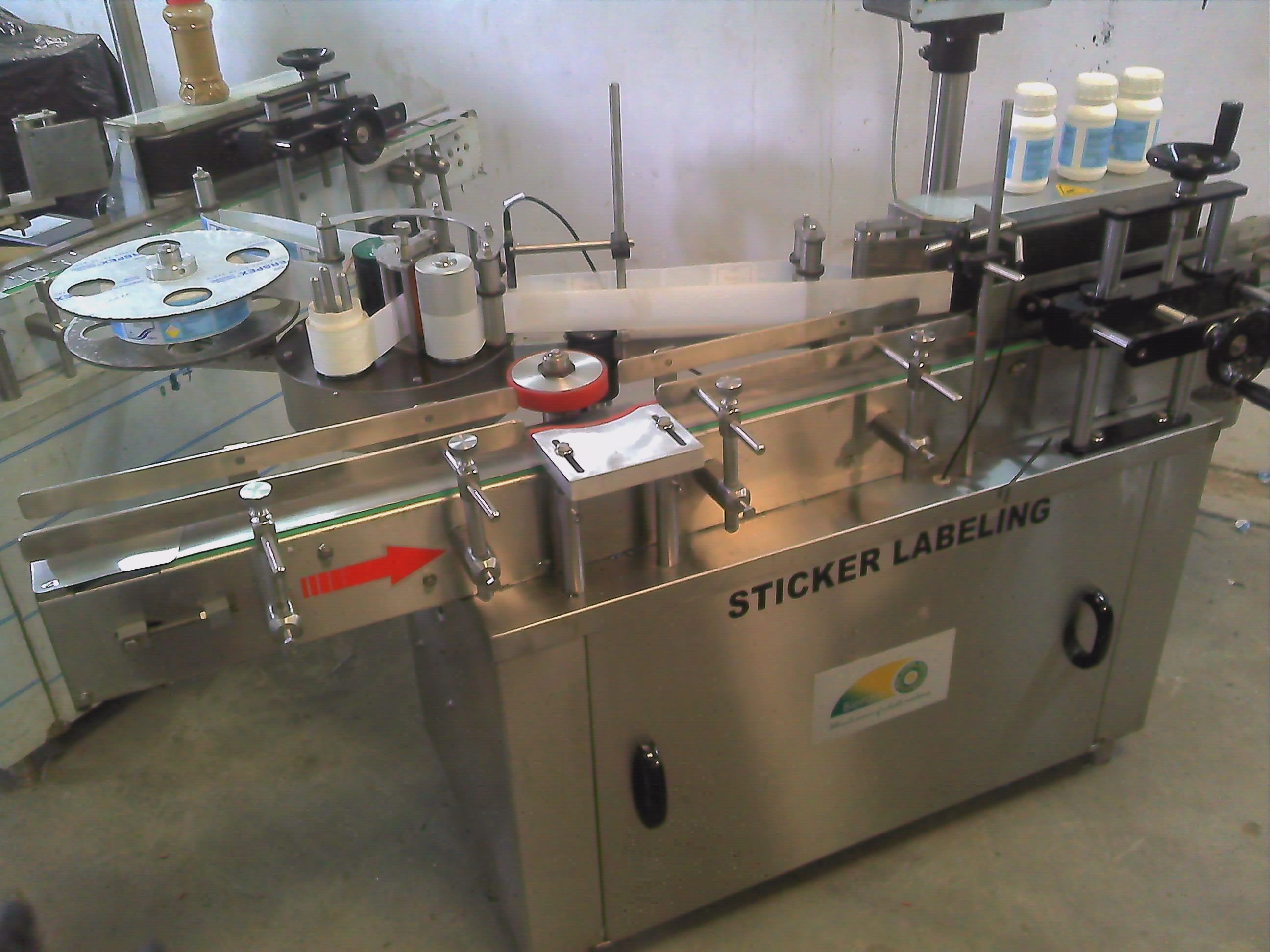

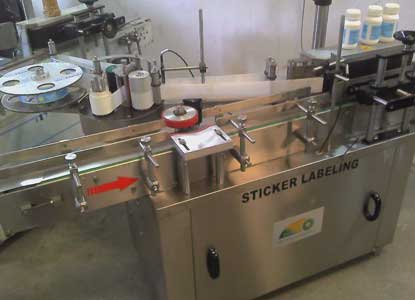

Wrap Around Self Adhesive Labeler





  • Product View
  • Technical Specification
  • Enquiry
BLENZOR offers “Wrap Around Self Adhesive Labeler” for applying the sticker labels in roll form on round bottles.
BLENZOR’s “Wrap Around Labeler” adapts self adhesive roll formed sticker labelling technology.
BLENZOR’s “Wrap Around Self Adhesive Sticker Labeler” is round bottle labelling works on Stepper Motor driven as well as Servo Motor driven label applying technology.

Features:
Match cG.M.P standard. Suitable for pharmaceutical and all other industries.
Material uses Frame and main components are made from SS304 stainless steel and anodized aluminum.
Suitable for a large of product size. Can label various kinds of products.
Prompt window is show automatically when wrong operation.
User-friendly display that everyone can operate without engineer.
Values of control was using well-know unit (mm sec and etc.) Not unknown unit.
Label Applicator uses stepper motor that accurate and stability.
Could use the Label Reel up to diameter 380mm. The Reminder not changes friction-pad that brings hide dust.
Auto-teach the label sensor.
Auto-set the label length.
Auto-set the label timing.
Hot Stamp Printer (stand optional) could prep-print date/batch code on the label.
The print direction could turn 90 without squander foil. The print position could adjustment, and the adjustment area of print position was large that was 300mm × 150mm.
The machine would stop labeling and alarm automatically when non-foil.
More specific devices/functions could be optional for production line, such as inspector, Rejecter, Container Flipper, 90 Degree Card Turner, Barcode Reader, CCD Camera and etc.

Industrial Catagories:
Labeler,label applicator,bottle labeling machine,single side labeler,sticker labeling machine,self adhesive labeling machine,labeling machine for bottles,wrap around labeling machine,side labeling machine,front back labeling machine,double side labeling machine,sticker labeler for bottles,2 side labeling machine,self adhesive labeling machine,labeler for self adhesive sticker labeling,stickering machine,label pasting machine,label applying machine
Machine Wrap Around Self Adhesive Label Applicator
Application Bottles,Containers,Jars of
Pharmaceuticals
Medical Bottles
Foods
Lubricants
Adhesive
Oils
Chemicals
Rectangular Shape,Round Shape
Bottle Dia Min.15mm-
Max.90mm
Label Sizes Min. 15mmx35mm
Max.90mmx150mm
Operating  System Automatic
Label Accuracy +/-2mm
Conveyor SS Slat
Label Roll Form Self Adhesive
Conveyor Drive 0.5HP Gear Motor-Bonfiglioli-Italy Make
Variable Speed Drive Delta Make
Construction Stainless Steel
Controller Micro-Processor based or PLC (optional)
Covers Stainless Steel
Label Applicator Imported Stepper Motor Driven or Servo Driven-Panasonic (Optional)
Label Release Sensor Imported
Labeling Spool (Core) Inner Dia-76mm
Outer Dia-380mm
Drives Electric Motor
Motor 0.5HP
Additional Feature Product Counter
Power Consumption 2KW
Air consumption 5cfm – 5kg
Power Supply 220V Single Phase,380-415V 3 Phase/50Hz
Dimension 2100mmL x1100mmW x 1800mmH
Weight 250kg
Output 50-60 Bottles  Per Minute
