Single Head Powder Filer




  • Product View
  • Technical Specification
  • Enquiry

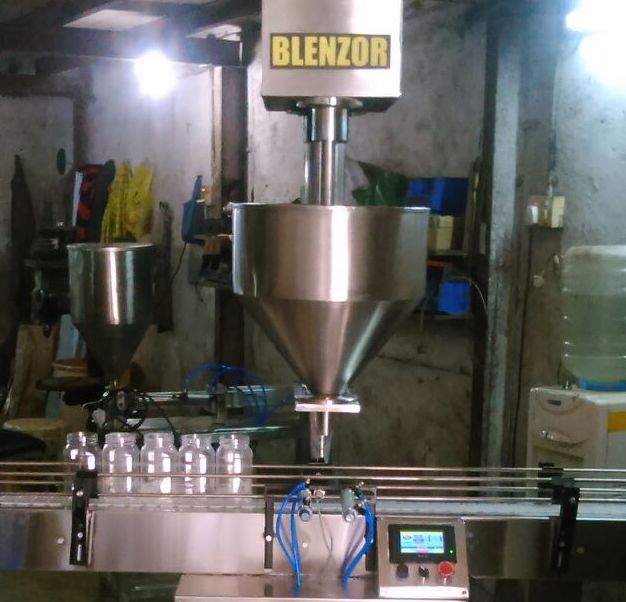

BLENZOR offers “Single Head Powder Filler” suitable for filling free flowing and non-free flowing powders in bottles, jars, containers etc.
This “Auger type powder filler” is useful to dispense desired quantity of powder.
BLENZOR’s “Single Head Powder Filler Machine” incorporated screw feed mechanism suitable for filling hygroscopic/ sticky powder with conveyor to handle bottles, jars automatically
BLENZOR’s “Single Head Powder Filler”works on high-speed screw dozing principles control by sophisticated electro-magnetic clutch-brake-system or servo motor driven system

Industrial Catagories:
auger filler,powder filler,powder filling machine,powder dozing machine,powder dispenser,talcum powder filler,curry powder filler,food powder filler,pharmaceutical powder filling machine,powder filling machinery,spices powder filler
Machine Single Head Powder Filler
Operating  System Automatic with Conveyor
Conveyor 1500mm Long SS Slat with Stopper
Stoppers Pneumatic Driven
Pneumatics Festo-Germany Make
Variable Speed Drive Delta  Make
Application Food Powder,Talcum Powder,Pharmaceutical Dry Syrups
Spices,Curry Powders,Cement Colours,Food  Colours
Chemical Powders,Milk Powders ,Detergent Powders  etc…
Filling Range 50 to 250 gms
250 to 500 gms
500 to 1000 gms
(All sizes can be done on one machine but separate screws are required for each range)
Filling in Bottles,Containers,Jars
Contact parts SS304,316,316L (as per request)
Hopper 25Kg
Charging Hopper 200Kg with Automatic cut-off sensor (optional)
Controller PLC based- Omron-Japan Make
Drives Clutch-Break or Servo Motor
Motor 1.5HP-Bonfiglioli-Itay Make
Fill Accuracy Clutch Break-1-2%
Servo Motor-0.5%
Power Consumption 1.5KW
Air consumption 5cfm – 5kg
Power Supply 220V Single Phase,380-415V 3 Phase/50Hz
Dimension 1500mmL x600mmW x 2100mmH
Weight 600kg
Output 10-30 Fills Per Minute (as per product flow characteristics)
