Semi-Automatic Lami/Plastic Tube Filliing Sealing Machine




  • Product View
  • Technical Specification
  • Enquiry

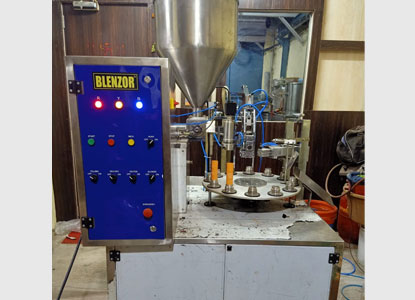

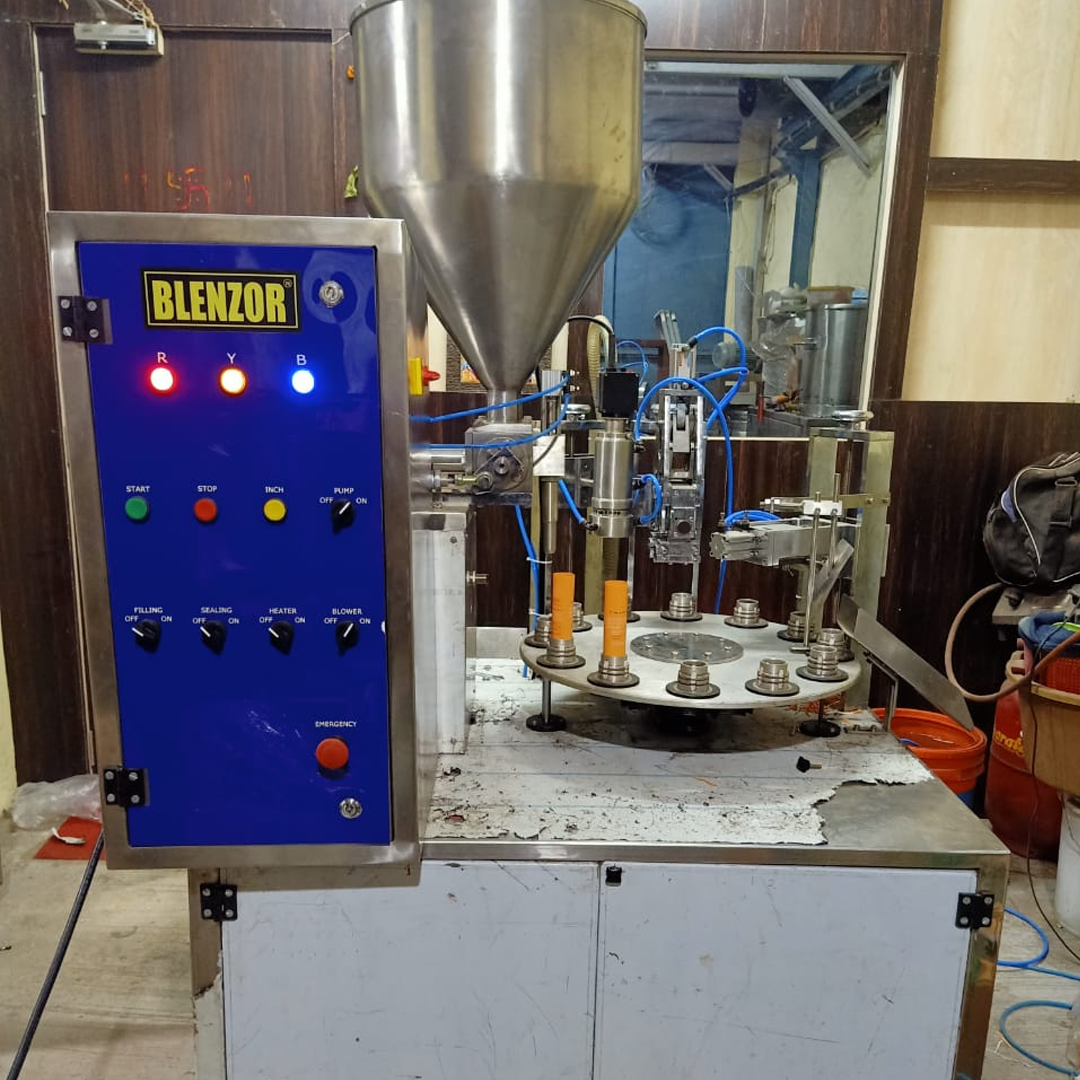

Machine: Semi-Automatic Plastic/Lami Tube Tube Filler with Sealer

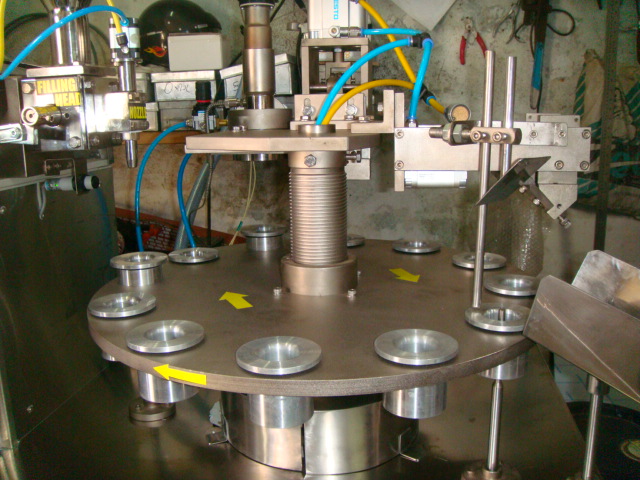

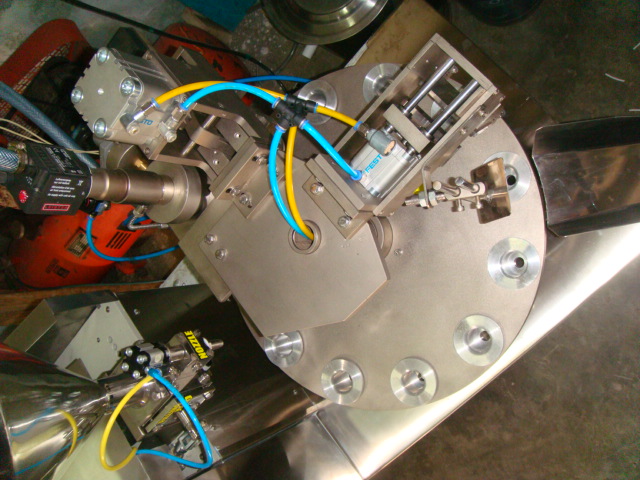

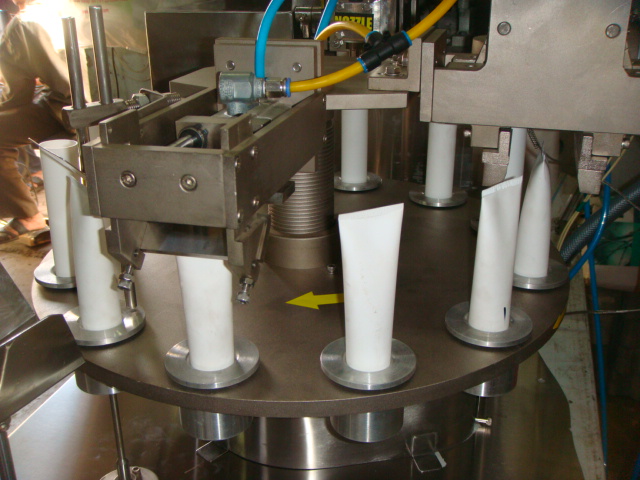

Rotary 12 Station Machine
Model: BLENZOTF-35LP
Product, To Fill & Seal: Creams,Pastes,Oinments,Gums,Balms,Honey,Pastes etc
Respect to tube Dia. & tube height maximum: Tube Diameter max. 40mm, & Tube height max. 200mm.
Filling device: Positive suction & displacement  PISTON type
After each filling stroke a control on tailing is achieved by a pneumatic cut-off system, along with filters, that cleans the nozzle of the excess sample.
Piston Pumps (5 Gms. to 30 Gms.) or (30 Gms.to 100 Gms.) or (100 Gms. to 250 Gms.) Any one of the three sets will be provided against requested specification in your order.

Industrial Catagories:
laminated tube filling machine,cosmetic tube filling machine,plastic tube filler,semi-automatic tube filler,automatic tube filling machine,rotary tube filling machine,linear tube filling machine,high speed tube filling machine,tooth paste tube filling machine,filling machines for plastic tube,lotion tube filling machine,pharmaceutical tube filling machine,medicine tube filling machine,cosmetic cream tube filling machine,ointment tube filling machine
Filling Capacity: Machine is suitable for 5 gms to 200 gms with inter changeable Piston pump.
Product , Contact Part: Stainless Steel 304 or 316 Grade
Hopper: 45 Kg capacity (Working Volume 40 Kg).
Filling Volume setting: Cam for Valve operation as well Fine Tuning adjustable Control System.
No tube - No Fill Device: Activate Sensor with Electrical Logic Control system.
Filling Accuracy: ± 1%.
Output per Minute: Up to 35 Tubes/ Min. In Single Hopper One Nozzle (depending on the Fill sizes).
Indexing Device of Turret: Manifold Indexer
Empty Tube in feeder: Manual
  Change Part : Piston Pump Housing of 30gms to 100 gms, Tube Holder cups, Filling Nozzle, and Heating Adopter, of Removable type suitable for any one-size of tubes. With basic machine. will be provided
  Tube Orientation Device:  Top Drive (Photocell Unit) Make Std. and Stepper Motor & ‘I’ Mark Sensor DETALOGIC Make. At the separate station.
  Lami / plastic tube heating device: LEISTER or BAK Swiss Make, with suitable for Blower 0.35 HP. BLOWTECH Make. And hot air tool adopter jacketed water cooling system Attached, at the separate station. At the separate station.
  Lami / Plastic Tube Sealing Device: Pneumatics operated. Jacketed water cooling System Attached, In sealing & coding where in the tube is pressed & sealed and then batch coded. With metal stereos coding Letter punch (female type 0 to 9, one set). At the separate station.
Trimming device: Pneumatics operated. At the separate station.
Tube ejection: Automatic Filled Tube ejection at separate station.
  Machine System Description: Empty Tube Feeding, ‘I’ Mark Orientation, Filling, Sealing, Crimping, Coding and filled Tube Ejector Automatically.
Machine security: Overload clutch for centering and micro switch cut-off system.
  Control Panel: Necessary functional features like emergency stop, re-set, inching, and user friendly, Electrical logic system are standard with the machine, with interlock & indication on the main operator’s of panel to Electrical logic Control.
Motor: 1. HP; 1440 RPM 3Ph. 440V AC.
Production Speed Control Variable speed control Suitable VFD Drive makes DELTA.
Production Counter: Digital Six Digit Production Counter.
Gear Box: Suitable Gear Box Ratio 30-1 Make PREMIUM/P.G. Drive with Separate Drive.
Production Counter: Activate Sensor with Electrical Logic Display 6 mm. Size, 6 Digital Counter.
All Pneumatic components: FESTO Make.
Machine Entire frame: Fabricated in Machine Entire frame Mild Steel With Powder Coated & will be in hard Chrome plated & duly ENP coated and all other cams and levers will be in graded casting & alloy steel. With all side covers in S.S.-304.
Power Input: 2-5 kW. 3 phase.
M/c. Dimensions : (L) 900mm     x    (W) 1200mm    x    (H) 2450mm.
M/c. Weight Approx: Overall Wt. Approx. 500 Kgs.

Utilities Required :
Input Power : Power In Put, 3 - 4 kW. at Site: 3 Phase/ 415V. ±15%, / 50Hz. ±5%, and Neutral. (As applicable)
 Compress Air : Client to Provide Instrument Quality Moisture Free Air supply for Smooth Filling Machine Function the Continuous Air to be supplied at Site: 6 Kgs. / Sq. Cm. Pressure At 10 CFM Max.
Cooling Water : Water Circulation At Site: 5 LPM at 12o C.
