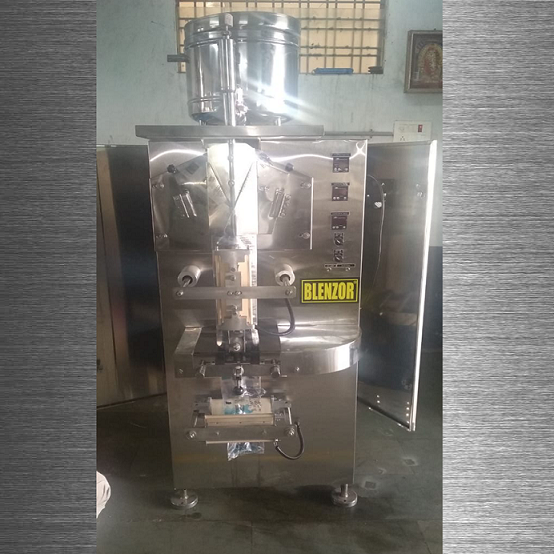

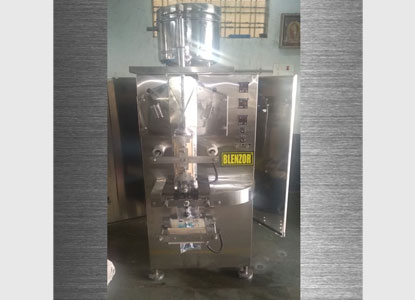

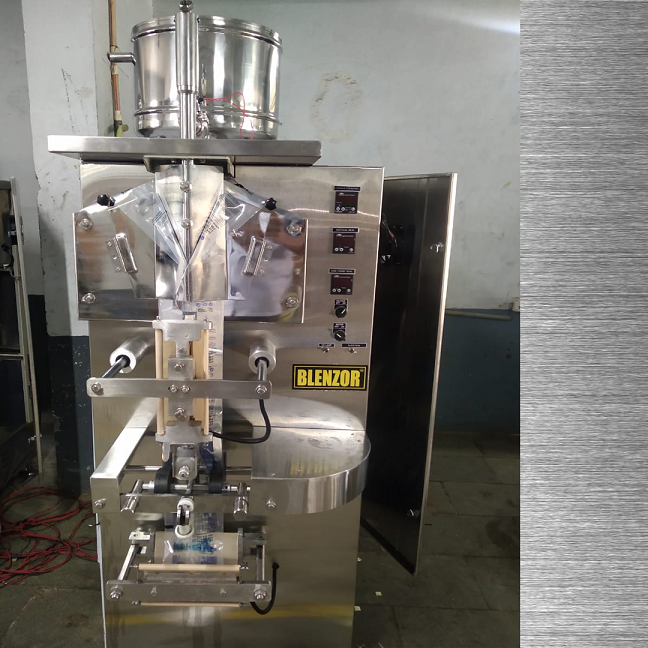

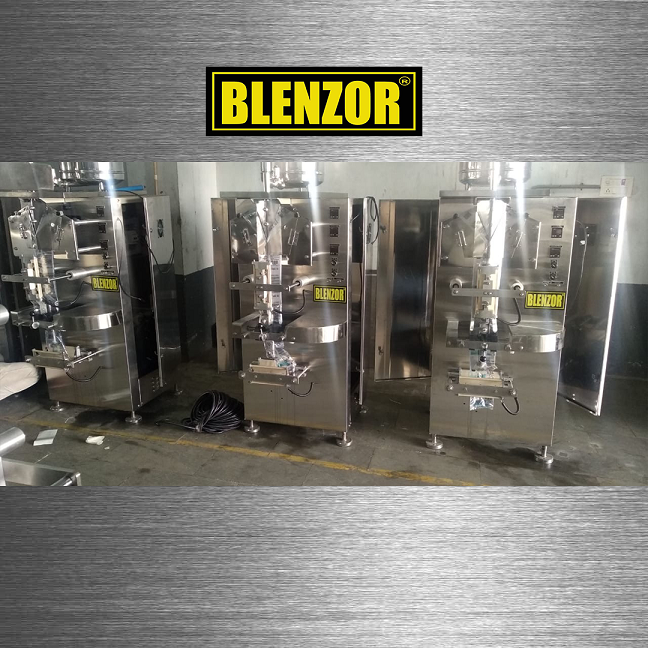

Sachet Water Packing Machine




  • Product View
  • Technical Specification
  • Enquiry

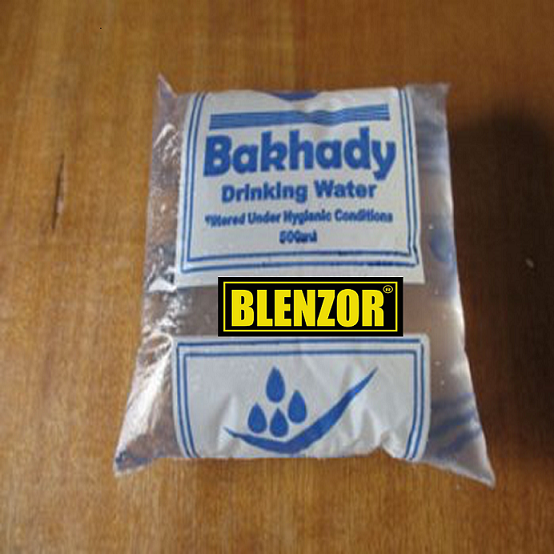

BLENZOR introduces “Sachet Water Packing Machine” for packing sachet water, drinking water, mineral water.
BLENZOR’s “Sachet Water Packing Machine” also known as Form Fill Seal Machine is specially designed for accurate dispensing of Water in form fill seal sachets
BLENZOR’s “Sachet Water Packing Machine” is suitable for all kinds of heat sealable packaging

Features:
Adopt photoelectric tracing technology and digital input to ensure accurate sealing & cutting position.
Digital temperature controller for each sealing zone.
Adopt dual frequency conversion controller, the length of bag can be set and cut at any time without the need to adjust trail operation. It is time saving and film saving.
Can set the machine stopping position, no sticking to the knife and no film wasted.
Accurate Feeding of the product by piston base filler driven by Electric Motor

Industrial Catagories:
Water sachet packing machine,water sachet filler,sachet water machine,drinking water sachet machine,water pouch machine,water pouch packing machinery
Machine Bottled Water Filling Machine
Applications Packaged Drinking Water, Bottled Water,Juices,Beverages
Filling Sizes 100ml-2000ml (5000ml on request)
Filling in Pet Bottles with 28mm, (22mm-38mm )
Main Machine Rotary Bottle Rinser,Rotary Capper with cap feeder, Rotary PLC based filler
Conveyor Infeed-8-10 feet (as per output)
Outfeed-10-15 feet
Inspection Online on conveyor with lights
Body Labeler Shrink Sleeve type or BOPP (Optional)
MOC Stainless Steel 316 Grade
Controller PLC based
Power Consumption 2-5HP as per model
Power Supply 380V -415V 3 Phase,50Hz
110V on request
Shrink Tunnel 2-5KW
Air Consumption 3-4kg per Cm2
2HP Compressor
Wooden Case Dimensions RFC Unit- 3600mm x 2400mm x 3000
Conveyors- 4500mmx 1200mmx 1200mm
Weight 2000kg
Output 24,30,60,90 Bottles Per Minute (Also 120 bottles per minute on request)
