Sachet Liquor Packing Machine




  • Product View
  • Technical Specification
  • Enquiry

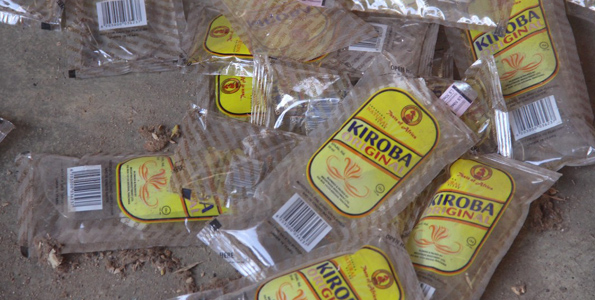

BLENZOR introduces “Sachet Liquor Packing Machine” for packing liquors,wines,gins,vodka etc

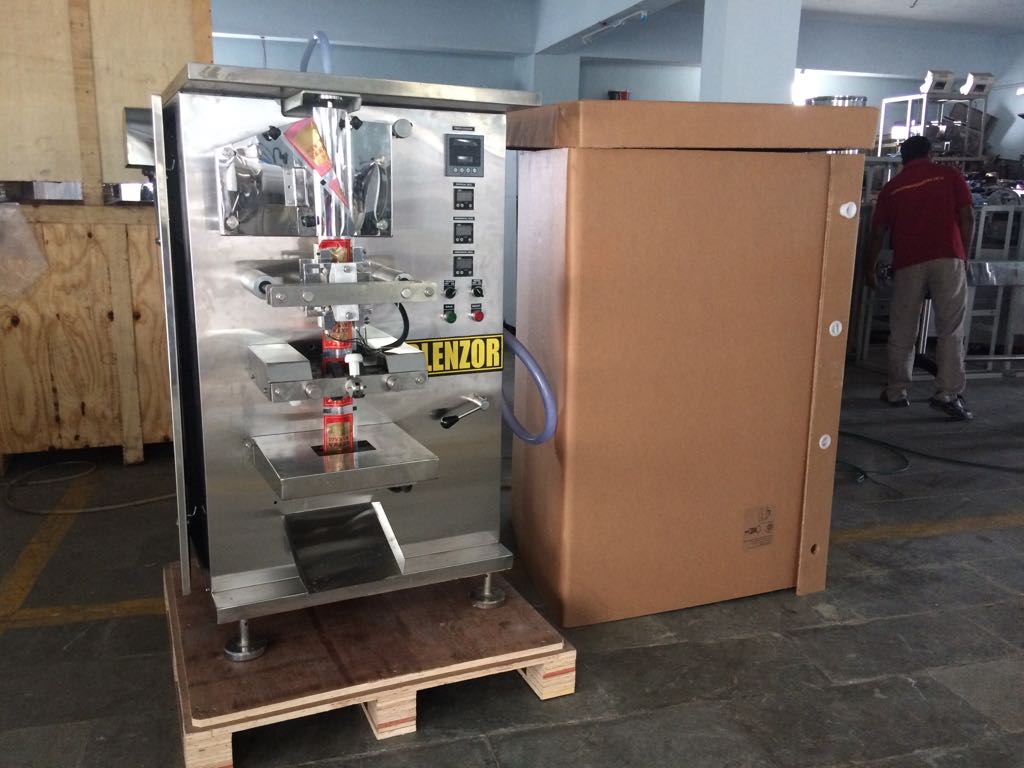

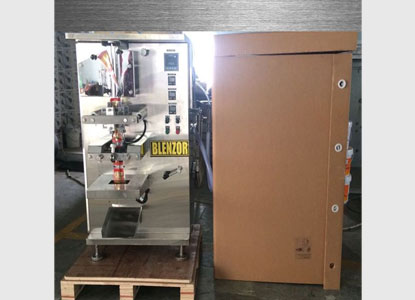

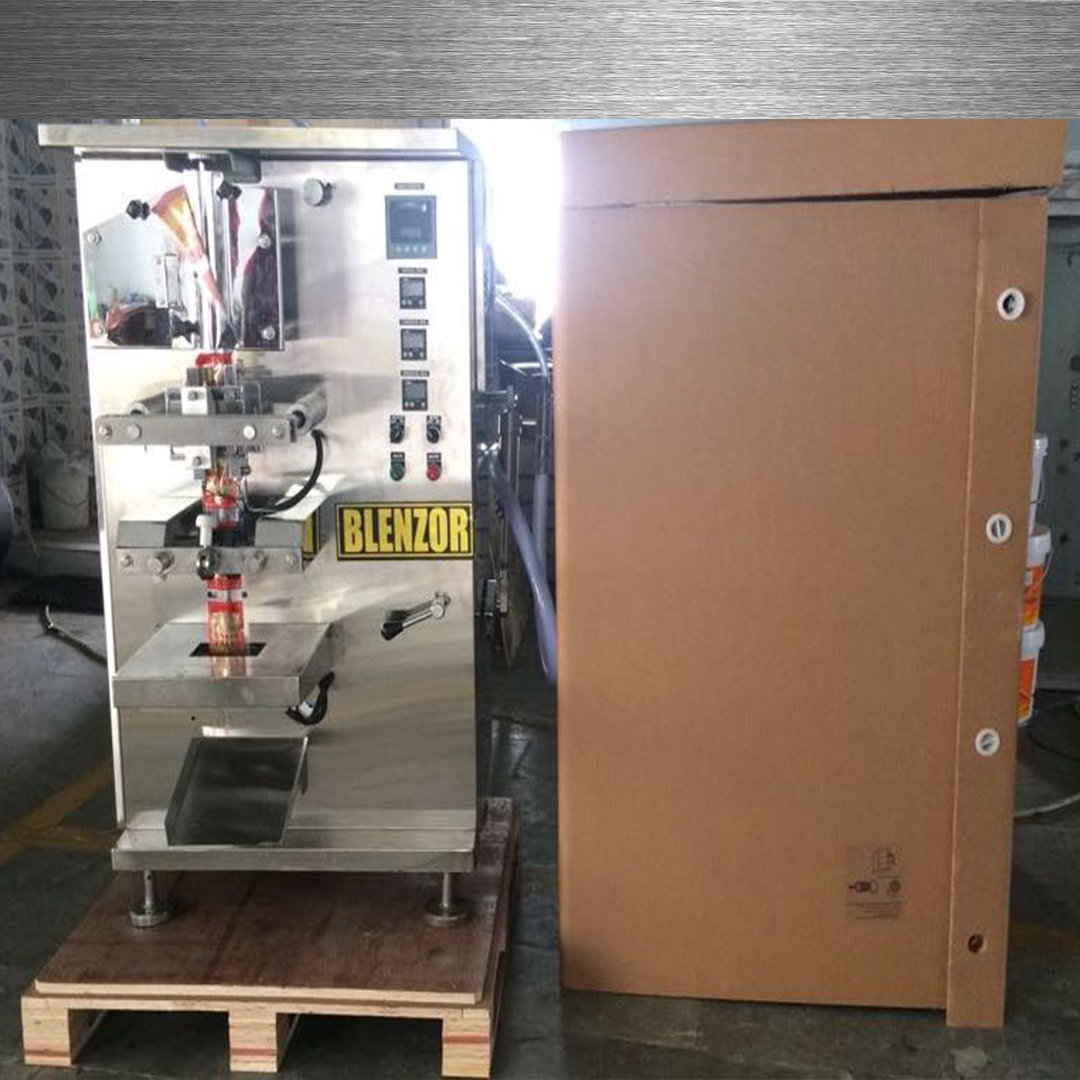

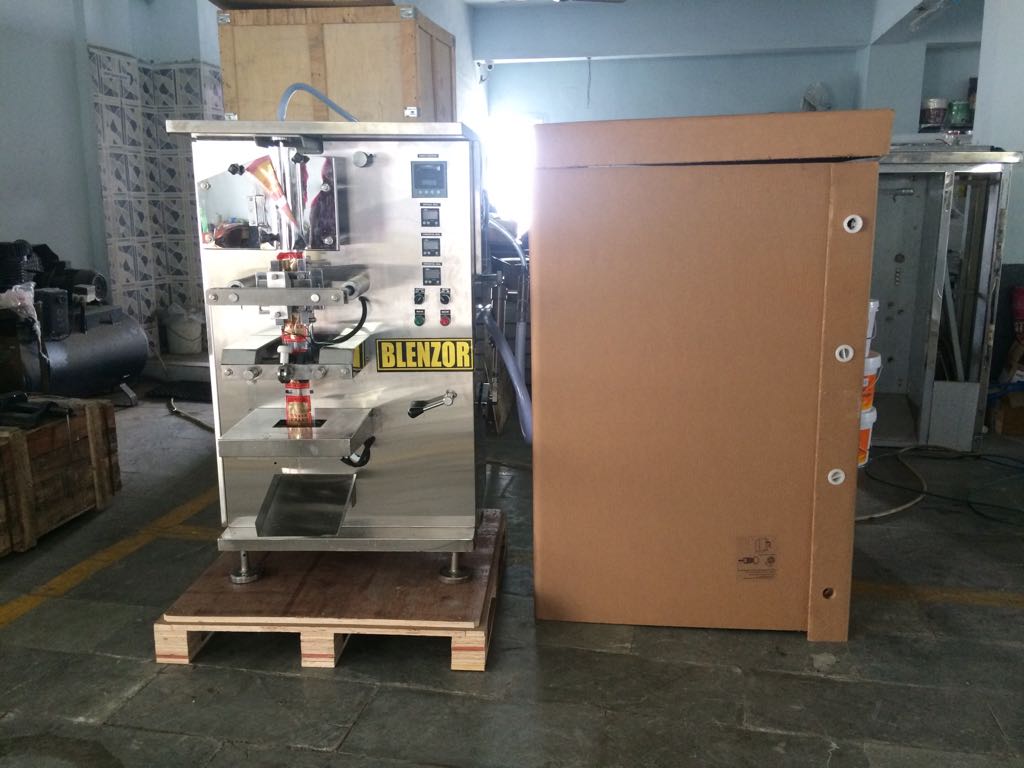

BLENZOR’s “Sachet Liquor Packing Machine” also known as Form Fill Seal Machine is specially designed for accurate dispensing of wines in form fill seal sachets
BLENZOR’s “Sachet Liquor Packing Machine” is suitable for all kinds of heat sealable packaging

Features:
Adopt photoelectric tracing technology and digital input to ensure accurate sealing & cutting position.
Digital temperature controller for each sealing zone.
Adopt dual frequency conversion controller, the length of bag can be set and cut at any time without the need to adjust trail operation. It is time saving and film saving.
Can set the machine stopping position, no sticking to the knife and no film wasted.
Accurate Feeding of the product by piston base filler driven by Electric Motor

Industrial Catagories:
Sachet liquor machine,liquor sachet packing machine,sachet packing machine for liquor,whisky sachet machine,vodka pouch packing machine,wine sachet pouch packer,sachet machine for alcohol,alcohol sachet machine
Machine Sachet Water Packing Machine
Application     Packaged Drinking Water
Mineral Water
Sachet Water
Pouched Water
Distilled Water
  Filling Range 30ml-500ml
Packaging Material Any heat sealable laminate
Filler type Piston Pump
Controller Electric Controller, PLC Based (Optional)
Production Output 25-30 Sachets Per Minute
Pouch Size Length-0-200mm
Width-0-100mm
Sealing 4 Side Seal
3 Side Seal
Paper Pulling Mechanical Roller
Input Water Can be connected directly to your storage tank
Sealing Heaters Strip Type- 1KW at each sealer zone
Motor 1.5HP
Pneumatics N.A
M.O.C. (Material Of Construction) Stainless Steel
Sealing Type Diamond /Knurling /Lining type
Electric Power 110V,220V Single Phase,50-60Hz
Power Consumption 2.5W
Dimensions 1200mmx 1200mmx 1500mm LBH
Weight 500Kg
