Rotary Perfume Filler




  • Product View
  • Technical Specification
  • Enquiry

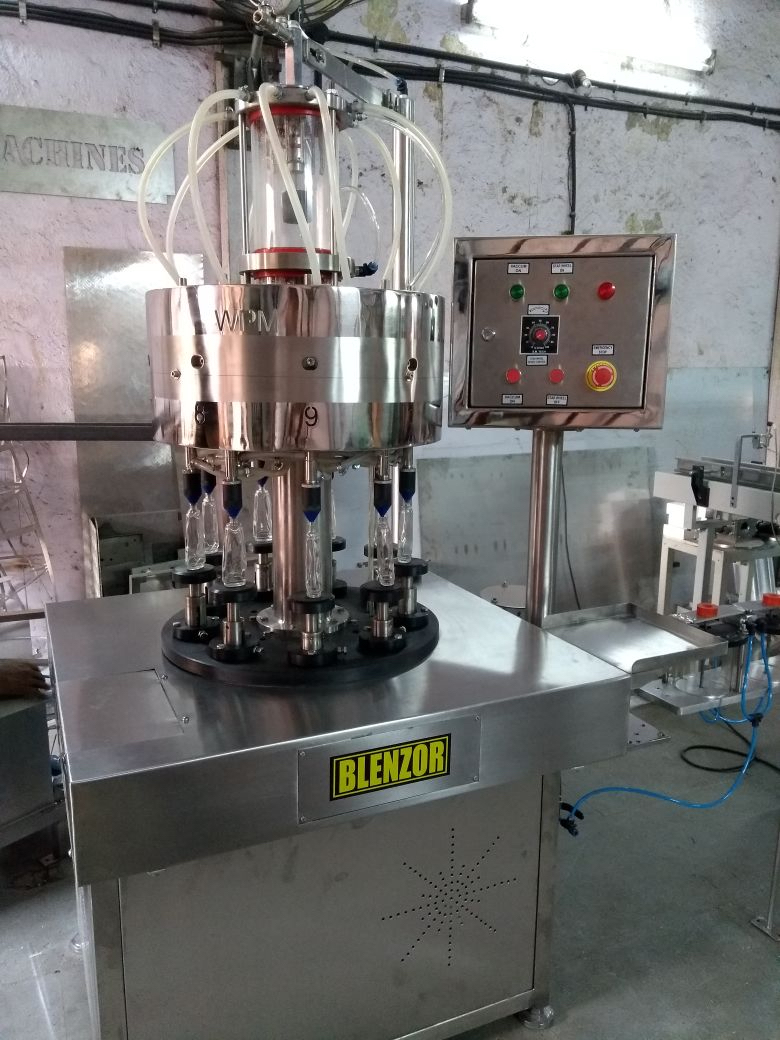

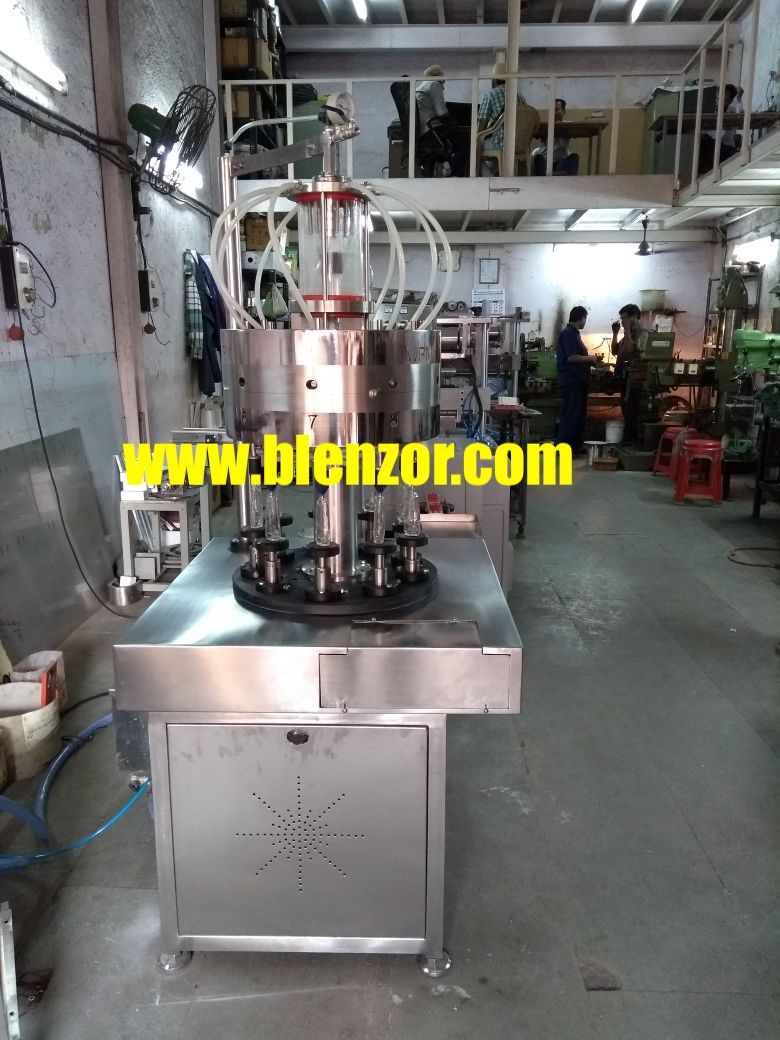

BLENZOR offers Rotary Perfume Filler suitable for filling perfumes in bottles
BLENZOR’s Rotary Perfume Filler Machine incorporated vacuum base filler with crimper mechanism.
BLENZOR’s Rotary Perfume Filler works on electric motor driven turret with 4 filling and single crimping stations.

Industrial Catagories:
Rotary Perfume filling sealing machinery,perfume bottle filling and crimping machine,manual perfume filler,bottle filling machine of perfume,vacuum filler,vacuum perfume filling machine,vacuumetric perfume filling machine,automatic perfume filling machine,perfume filling automatic machine.
Machine Rotary Perfume Filler
Application Perfumes,Attars
Filling Range 5ml-50ml
100ml-500ml
Operating  System Automatic
Fill Accuracy +/-1%
Pump Vacuum
Tank 50Lit.
Filler 4 Head-Vacuum Filler with Pneumatric Drive
Crimping Unit Pneumatic-Festo-Germany Make
Variable Speed Drive Delta Make
Turret 12 station-Geneva Indexing mechanism with motor drive
Bottle Holder Cup type as per bottle diameter
Filling in Glass Bottles
Construction Stainless Steel
Contact Parts Stainless Steel 304 Grade/316 Grade (as per request)
Controller Electric Control Panel
Drives Electric Motor
Motor 2HP
Additional Feature No-Bottle-No-Fill sensor
Power Consumption 1.5KW
Air consumption 5cfm – 5kg
Power Supply 220V Single Phase,380-415V 3 Phase/50Hz
Dimension 1800mmL x1200mmW x 1500mmH
Weight 800kg
Output 15-25 Bottles Per Minute
