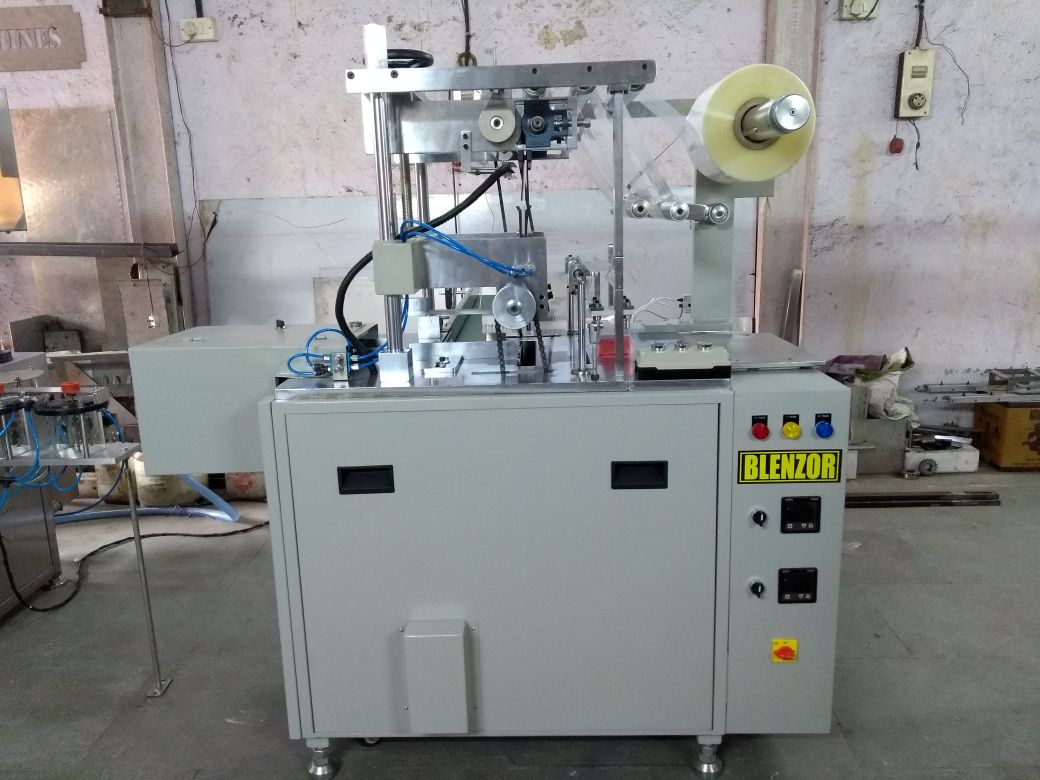

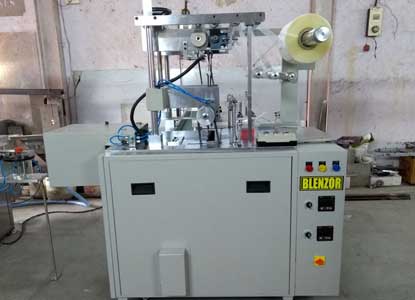

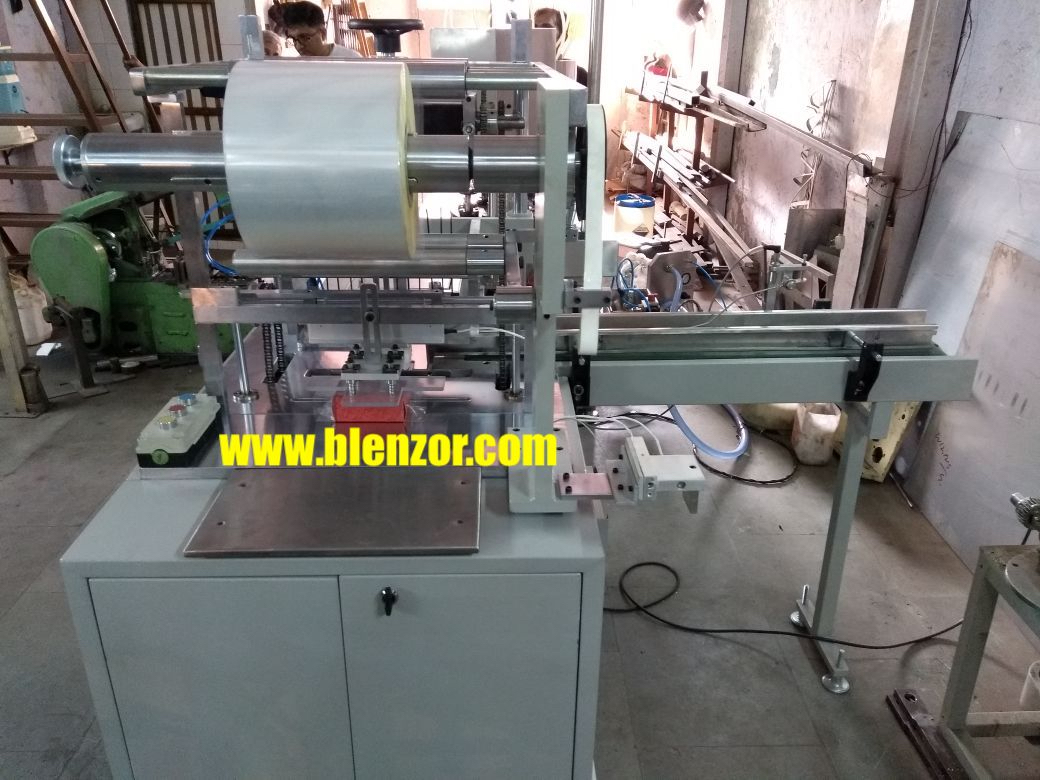

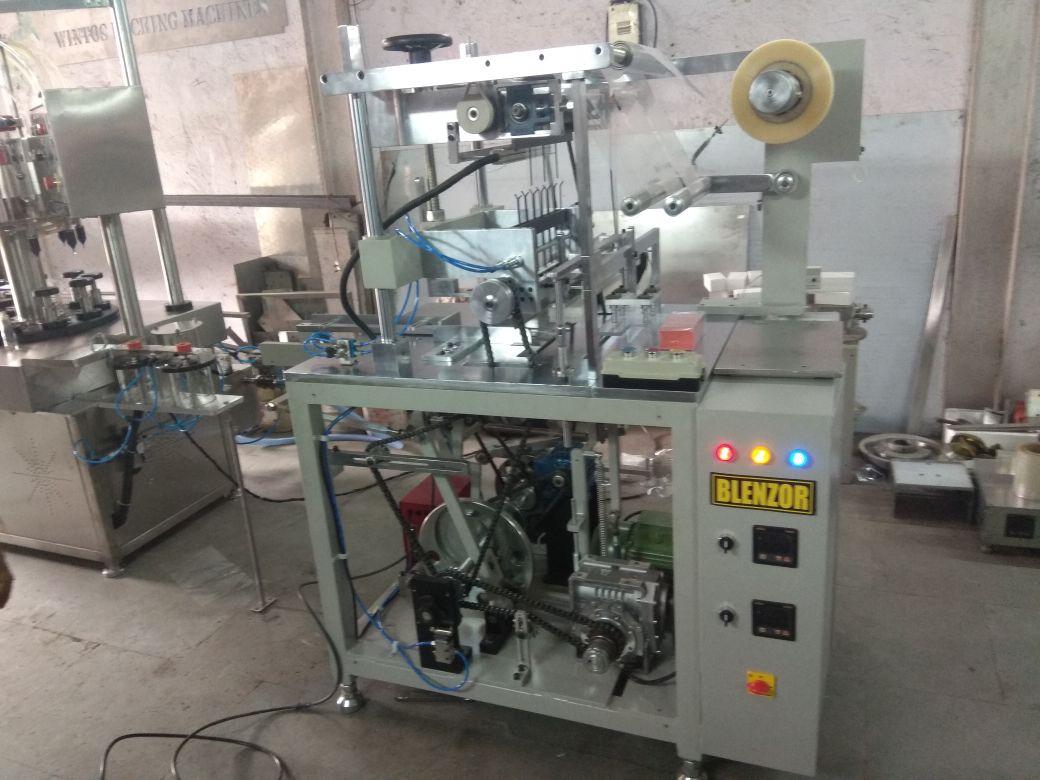

Cellophane BOPP Overwrapping Machine




  • Product View
  • Technical Specification
  • Enquiry
BLENZOR offers Cellophane BOPP Overwrapping Machine for wrapping rectangular cartons.
BLENZOR’s BOPP Overwrapping Machine incorporated clear film wrapping of carton with pusher-sealer mechanism
BLENZOR’s Cellophane Overwrapping works on electric motor driven paper pulling,carton pushing,sealing technology.

Features:
Compact structure, reliable and advanced, easy for operation
Adopts multifunction digital frequency inverter, step-less speed control
Digital display of heating temperature
Automatic feeding, automatic counter
Driving unit has protection device and indication of malfunction
There is test run film feeding clutch, not waster the packing materials

Industrial Catagories:
Overwrapping machine,cellophane overwrapping machine,bopp overwrapping machine,perfume carton wrapping machine,wrapping machine for perfume cartons,carton box overwrapping machine,perfume box wrapping machine,condom box carton cellophane bopp wrapping machine
Machine Cellophane BOPP Overwrapping Machine

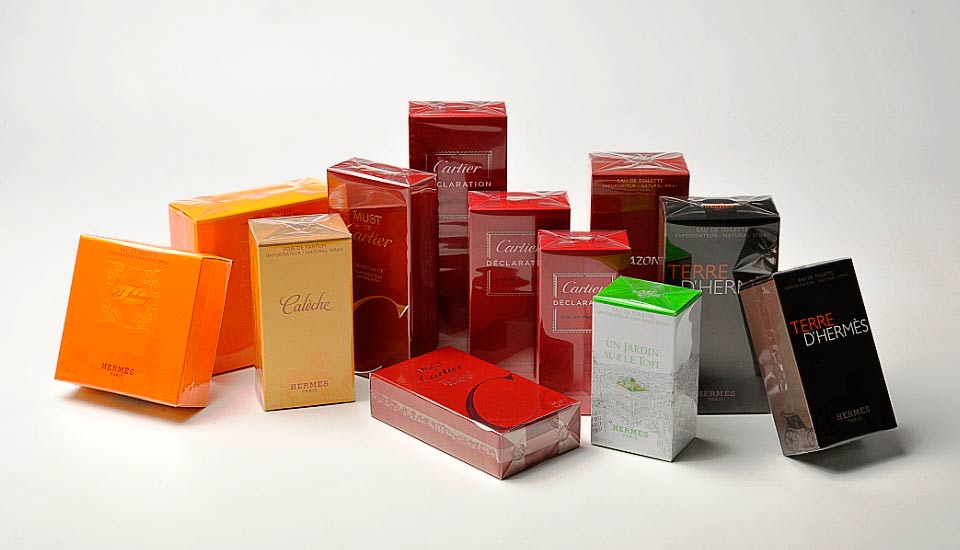

Application Perfume Boxes
Perfume Cartons
Medical Boxes
Spices Boxes
Tea-leaf Cartons,
Cubic-sugar Cartons,
Disk,
Condom,
Cigarette,
Carton Sizes 0-300mm- Length
0-100mm-Width
0-100mm-Height
Max Film Roll 400mm
Operating  System Automatic
Fill Accuracy +/-1%
Pusher Slide-Imported (Hi-Win make)
Packing Film BOPP/Cellophane
Temp.Indicator Digital
Variable Speed Drive Delta Make
Film Orientation Mechanical
Tear Tape Mechanical (Optional)
Covers MS Powder Coated
Construction MS Heavy Duty Fabricated
Contact Parts Stainless Steel 304 Grade/316 Grade (as per request)
Controller Electric Control Panel
Drives Electric Motor
Motor 2HP
Additional Feature Product Counter, Shrink Pad
Power Consumption 2KW
Air consumption 5cfm – 5kg
Power Supply 220V Single Phase,380-415V 3 Phase/50Hz
Dimension 1800mmL x1200mmW x 1500mmH
Weight 800kg
Output 25-30 Cartons Per Minute
